511-9U
Wakefield-Vette

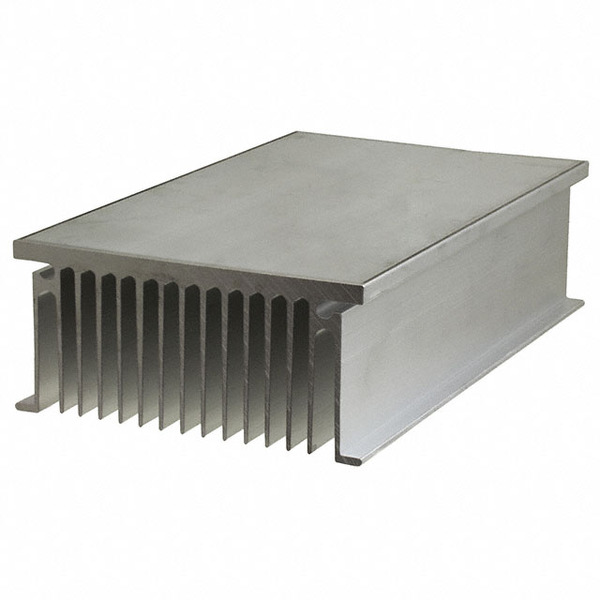

Images are for reference only.
See Product Specifications for product details.
Buy 511-9U with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 511-9U with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 511-9U |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK FOR PWR MOD/IGBT/RELAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $59.79 | $56.269 | $52.752 | $49.235 | $47.477 | |
Specifications
Data sheet
| Width: | 5.210" (132.33mm) |
|---|---|
| Type: | Top Mount, Extrusion |
| Thermal Resistance @ Natural: | 0.56°C/W |
| Thermal Resistance @ Forced Air Flow: | - |
| Shape: | Rectangular, Fins |
| Series: | 511 |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | Power Modules |
| Other Names: | 345-1210 511-9U-ND 5119U |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | - |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length: | 9.000" (228.60mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 2.410" (61.21mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink Power Modules Aluminum Top Mount, Extrusion |
| Attachment Method: | Adhesive |
| Email: | info@cjjhk.com |
Introduce
We can supply 511-9U, use the request quote form to request 511-9U pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 511-9U.The price and lead time for 511-9U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 511-9U.We look forward to working with you to establish long-term relations of cooperation
