5041950470
Affinity Medical Technologies - a Molex company

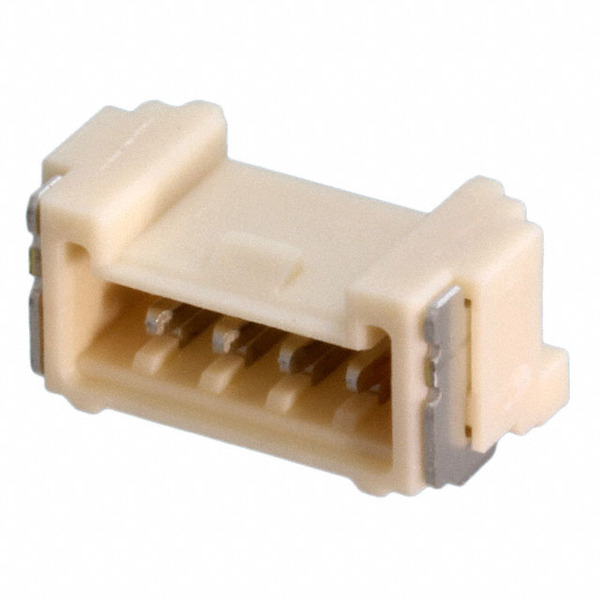

Images are for reference only.
See Product Specifications for product details.
Buy 5041950470 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 5041950470 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 5041950470 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25MM RA HDR 4CKT SINGLE ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1200 pcs | 2400 pcs | 6000 pcs | 8400 pcs | 12000 pcs |
|---|---|---|---|---|---|
| $0.61 | $0.553 | $0.534 | $0.507 | $0.496 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Micro-Lock 504195 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.049" (1.25mm) |
| Packaging: | Tape & Reel (TR) |
| Overall Contact Length: | - |
| Other Names: | 504195-0470 WM10585TR |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 4 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height: | 0.163" (4.15mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Solder Retention |
| Fastening Type: | Latch Lock |
| Detailed Description: | Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm) |
| Current Rating: | - |
| Contact Type: | Male Blade |
| Contact Shape: | Rectangular |
| Contact Material: | Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating: | 39.4µin (1.00µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 5041950470, use the request quote form to request 5041950470 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 5041950470.The price and lead time for 5041950470 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 5041950470.We look forward to working with you to establish long-term relations of cooperation
