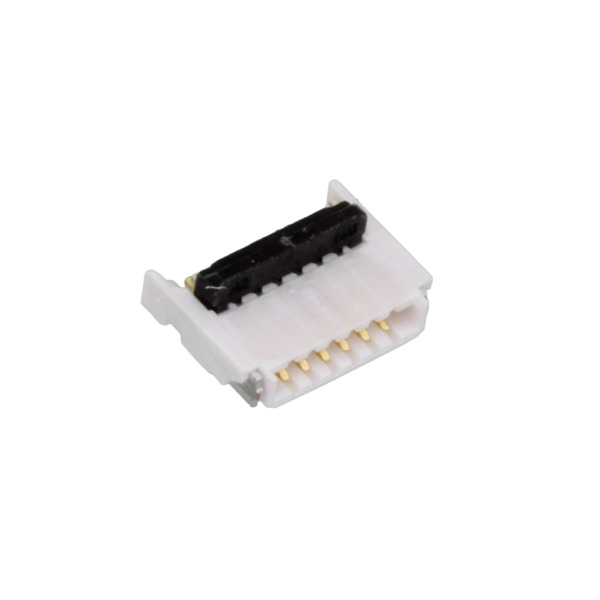

5034800600
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 5034800600 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 5034800600 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 5034800600 |
|---|---|
| Manufacturer | Molex |
| Description | Molex 503480-0600 FFC & FPC Connectors, .5mm, FPC 6P Conn Ra Smt B-Flip Dual |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.51 | $0.46 | $0.415 | $0.406 | ||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | BackFlip, Easy-On 503480 |
| Pitch: | 0.020" (0.50mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 503480-0600 WM1387TR |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Positions: | 6 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 10 |
| Material Flammability Rating: | UL94 V-0, UL94 HB |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Locking Feature: | Flip Lock, Backlock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color: | White |
| Height Above Board: | 0.039" (1.00mm) |
| Flat Flex Type: | FFC, FPC |
| Features: | Solder Retention |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 6 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating: | 0.5A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | 3.90µin (0.099µm) |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Top and Bottom |
| Cable End Type: | Straight, Tapered |
| Actuator Material: | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply 5034800600, use the request quote form to request 5034800600 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 5034800600.The price and lead time for 5034800600 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 5034800600.We look forward to working with you to establish long-term relations of cooperation
