502443-0270
Affinity Medical Technologies - a Molex company

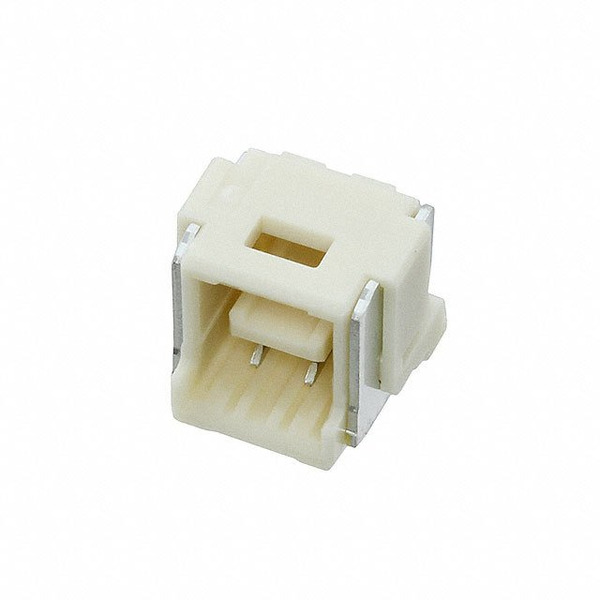

Images are for reference only.
See Product Specifications for product details.
Buy 502443-0270 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 502443-0270 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 502443-0270 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 W/B SGL S/TRECASSY2CKTEMBSTP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 650 pcs | 1300 pcs | 1950 pcs | 3250 pcs | |
|---|---|---|---|---|---|
| $0.317 | $0.261 | $0.253 | $0.238 | ||
| 6500 pcs | 16250 pcs | 32500 pcs | |||
| $0.23 | $0.211 | $0.206 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Series: | CLIK-Mate 502443 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 5024430270 WM15808TR |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 2 |
| Mounting Type: | Surface Mount |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Resin |
| Insulation Height: | 0.293" (7.44mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Solder Retention |
| Fastening Type: | Latch Holder |
| Detailed Description: | 2 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin |
| Current Rating: | - |
| Contact Type: | Forked |
| Contact Shape: | - |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | - |
| Contact Finish Thickness - Post: | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating: | 39.4µin (1.00µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Receptacle |
| Applications: | Automotive, General Purpose, Industrial, Lighting, Medical |
| Email: | info@cjjhk.com |
Introduce
We can supply 502443-0270, use the request quote form to request 502443-0270 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 502443-0270.The price and lead time for 502443-0270 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 502443-0270.We look forward to working with you to establish long-term relations of cooperation
