5023821370
Affinity Medical Technologies - a Molex company

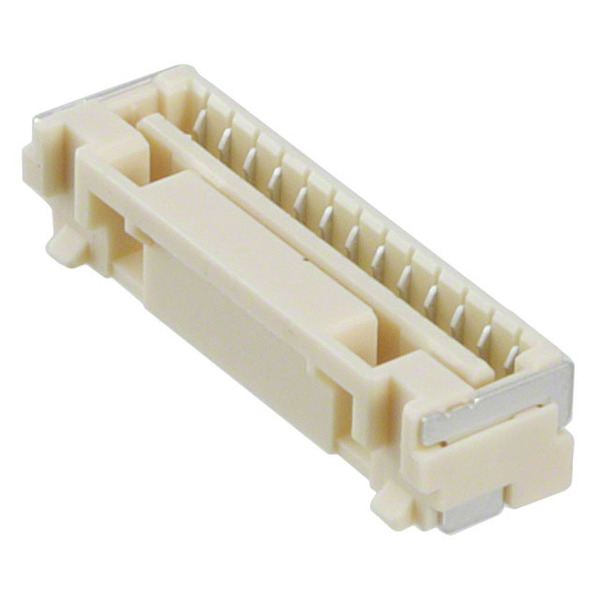

Images are for reference only.
See Product Specifications for product details.
Buy 5023821370 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 5023821370 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 5023821370 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 13POS 1.25MM W/B VERT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.00 | $0.881 | $0.76 | $0.622 | ||
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Series: | CLIK-Mate 502382 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.049" (1.25mm) |
| Packaging: | Original-Reel® |
| Other Names: | WM4943DKR |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 13 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 19 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Resin |
| Insulation Height: | 0.173" (4.40mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Solder Retention |
| Fastening Type: | Latch Holder |
| Detailed Description: | 13 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin |
| Current Rating: | 1A |
| Contact Type: | Forked |
| Contact Shape: | - |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | - |
| Contact Finish Thickness - Post: | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating: | 39.4µin (1.00µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Receptacle |
| Applications: | Automotive, General Purpose, Industrial, Lighting, Medical |
| Email: | info@cjjhk.com |
