5023521500
Affinity Medical Technologies - a Molex company

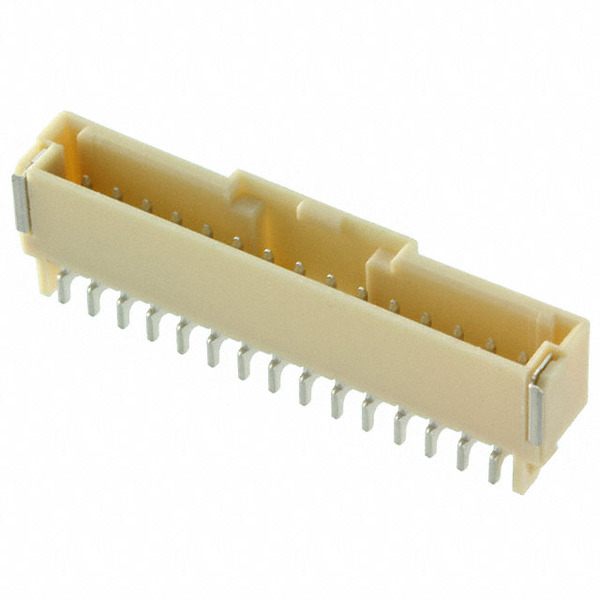

Images are for reference only.
See Product Specifications for product details.
Buy 5023521500 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 5023521500 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 5023521500 |
|---|---|
| Manufacturer | Molex |
| Description | DuraClik Wire-to-Board Header, Single Row, Right-Angle, 15 Circuits, Tin (Sn) Plating, Natural |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.54 | $1.39 | $1.254 | $1.227 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | DuraClik 502352 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tape & Reel (TR) |
| Overall Contact Length: | - |
| Other Names: | 502352-1500 5023521500-ND WM11914TR |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 15 |
| Mounting Type: | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA), Nylon |
| Insulation Height: | 0.252" (6.40mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Solder Retention |
| Fastening Type: | Latch Lock |
| Detailed Description: | Connector Header Surface Mount, Right Angle 15 position 0.079" (2.00mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.136" (3.45mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, Industrial |
| Email: | info@cjjhk.com |
Introduce
We can supply 5023521500, use the request quote form to request 5023521500 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 5023521500.The price and lead time for 5023521500 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 5023521500.We look forward to working with you to establish long-term relations of cooperation
