5022312400
Affinity Medical Technologies - a Molex company

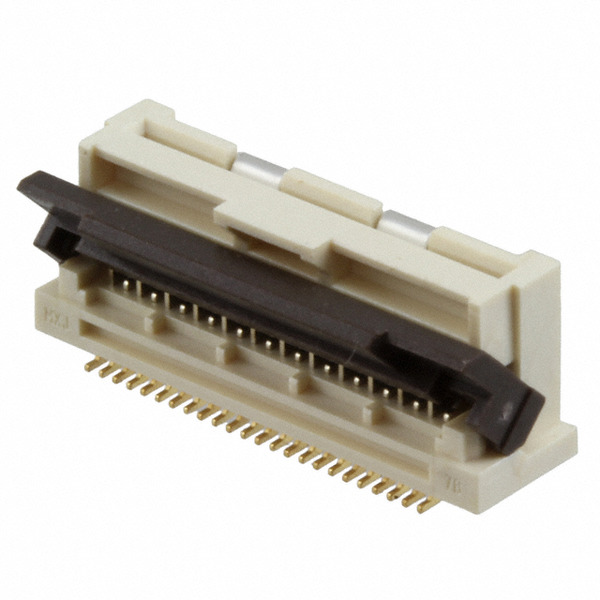

Images are for reference only.
See Product Specifications for product details.
Buy 5022312400 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 5022312400 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 5022312400 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 24POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.917 | $0.886 | $0.855 | $0.813 | $0.794 | |
Specifications
Data sheet
| Voltage Rating: | 50V |
|---|---|
| Termination: | Solder |
| Series: | Easy-On 502231 |
| Pitch: | 0.020" (0.50mm) |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 00502231-2400 0502231-2400 502231-2400 5022312400-ND WM9863TR |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Positions: | 24 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 20 |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Locking Feature: | Flip Lock |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color: | Natural |
| Height Above Board: | 0.238" (6.05mm) |
| Flat Flex Type: | FFC |
| Features: | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness: | 0.30mm |
| Detailed Description: | 24 Position FFC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Current Rating: | 0.4A |
| Contact Material: | Phosphor Bronze |
| Contact Finish Thickness: | - |
| Contact Finish: | Gold |
| Connector/Contact Type: | Contacts, Vertical, 1 Sided |
| Cable End Type: | Straight |
| Actuator Material: | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Actuator Color: | Brown |
| Email: | info@cjjhk.com |
Introduce
We can supply 5022312400, use the request quote form to request 5022312400 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 5022312400.The price and lead time for 5022312400 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 5022312400.We look forward to working with you to establish long-term relations of cooperation
