50216-B002PL
3M

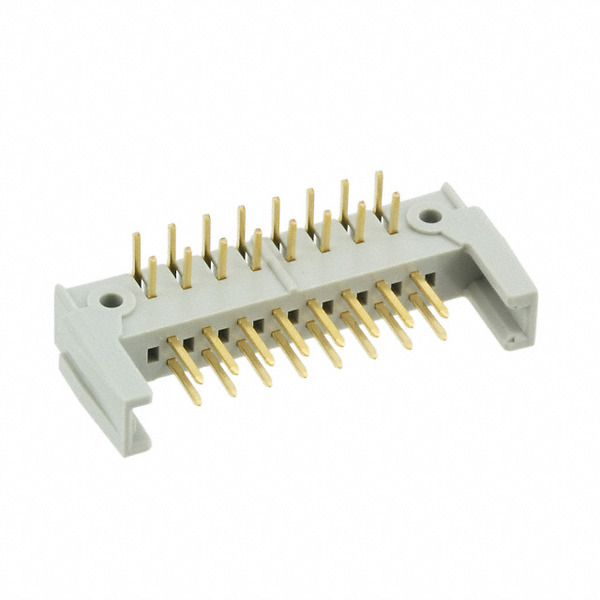

Images are for reference only.
See Product Specifications for product details.
Buy 50216-B002PL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 50216-B002PL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 50216-B002PL |
|---|---|
| Manufacturer | 3M |
| Description | 16/COMPHDR/RA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 2 Wall |
| Series: | 502 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 0-45-47452-26302-8 4547452263028 50216B002PL 54745226302 JE150318903 |
| Operating Temperature: | -40°C ~ 85°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height: | 0.193" (4.90mm) |
| Insulation Color: | Gray |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) |
| Current Rating: | 1A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.110" (2.79mm) |
| Contact Length - Mating: | 0.197" (5.00mm) |
| Contact Finish Thickness - Post: | Flash |
| Contact Finish Thickness - Mating: | 12.0µin (0.30µm) |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 50216-B002PL, use the request quote form to request 50216-B002PL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 50216-B002PL.The price and lead time for 50216-B002PL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 50216-B002PL.We look forward to working with you to establish long-term relations of cooperation
