501403B00000G
Aavid Thermalloy

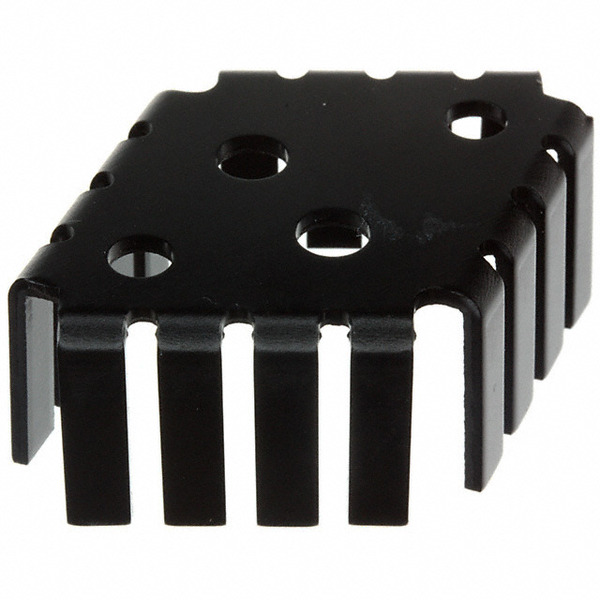

Images are for reference only.
See Product Specifications for product details.
Buy 501403B00000G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 501403B00000G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 501403B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK TO-3 .750" COMPACT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.22 | $1.157 | $1.127 | $1.096 | $1.035 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.974 | $0.914 | $0.853 | $0.822 | ||
Specifications
Data sheet
| Width: | 1.400" (35.56mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | 10.00°C/W |
| Thermal Resistance @ Forced Air Flow: | 3.00°C/W @ 400 LFM |
| Shape: | Rhombus |
| Series: | - |
| Power Dissipation @ Temperature Rise: | 4.0W @ 40°C |
| Package Cooled: | TO-3 |
| Other Names: | 001146 501403B00000 5014B 6014B HS149 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Length: | 1.880" (47.75mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.750" (19.05mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink TO-3 Aluminum 4.0W @ 40°C Board Level |
| Attachment Method: | Bolt On |
| Email: | info@cjjhk.com |
Introduce
We can supply 501403B00000G, use the request quote form to request 501403B00000G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 501403B00000G.The price and lead time for 501403B00000G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 501403B00000G.We look forward to working with you to establish long-term relations of cooperation
