45210-500200
3M

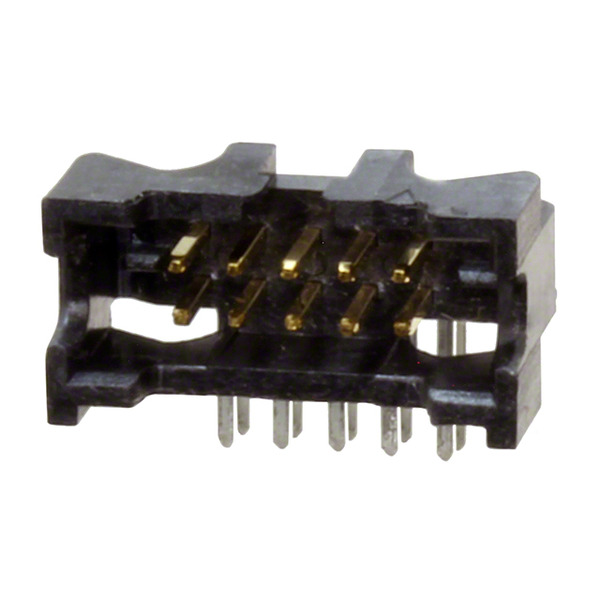

Images are for reference only.
See Product Specifications for product details.
Buy 45210-500200 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 45210-500200 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 45210-500200 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER .05" 10POS RA T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 324 pcs | ||
|---|---|---|---|---|---|
| $2.56 | $2.458 | $1.792 | |||
| 648 pcs | 1296 pcs | 5184 pcs | |||
| $1.741 | $1.485 | $1.331 | |||
Specifications
Data sheet
| Voltage Rating: | 125V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 452 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Pitch - Mating: | 0.050" (1.27mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 00076308615574 3M156840 45210-500200-ND 7010408054 76308615574 80001405226 |
| Operating Temperature: | -65°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Insulation Height: | 0.210" (5.33mm) |
| Insulation Color: | - |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm) |
| Current Rating: | 1A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.094" (2.40mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 45210-500200, use the request quote form to request 45210-500200 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 45210-500200.The price and lead time for 45210-500200 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 45210-500200.We look forward to working with you to establish long-term relations of cooperation
