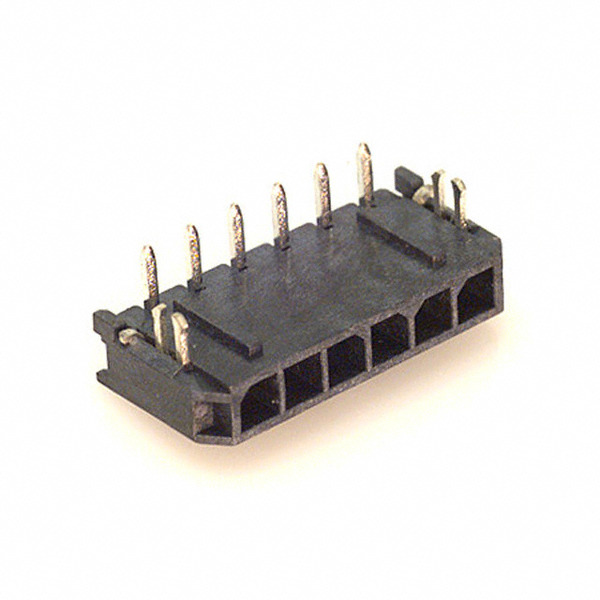

43650-0603
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 43650-0603 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 43650-0603 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 43650-0603 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS R/A W/CLIP TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.43 | $1.299 | $1.113 | $0.928 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.795 | $0.705 | $0.689 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Micro-Fit 3.0 43650 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.118" (3.00mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0436500603 436-50-0603-P 43650-0603-P 436500603 WM1874 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 6 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height: | 0.172" (4.37mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole, Right Angle 6 position 0.118" (3.00mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.125" (3.18mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | General Purpose, Medical, Military, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 43650-0603, use the request quote form to request 43650-0603 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 43650-0603.The price and lead time for 43650-0603 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 43650-0603.We look forward to working with you to establish long-term relations of cooperation
