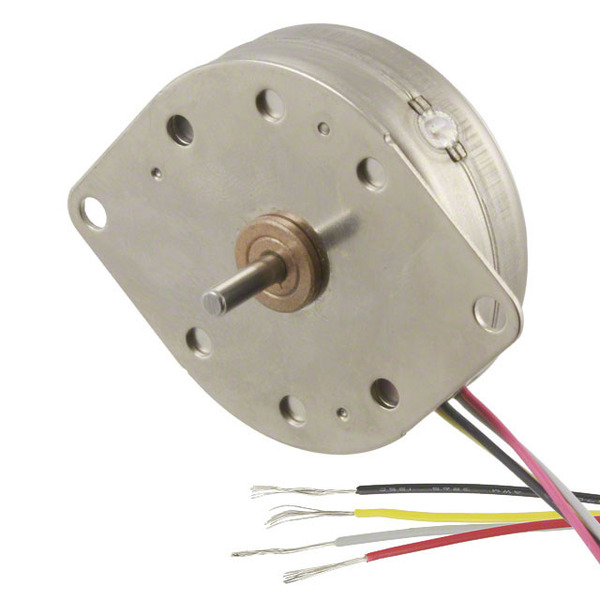

42M100B1B
Portescap
Images are for reference only.
See Product Specifications for product details.
Buy 42M100B1B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 42M100B1B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 42M100B1B |
|---|---|
| Manufacturer | Portescap |
| Description | STEPPER MOTOR PM BIPOLAR 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $29.60 | $28.706 | $26.912 | $26.015 | ||
| 50 pcs | 100 pcs | 250 pcs | |||
| $25.118 | $24.221 | $23.862 | |||
Specifications
Data sheet
| Weight: | 0.193 lb (87.54g) |
|---|---|
| Voltage - Rated: | 5VDC |
| Type: | Permanent Magnet |
| Torque - Holding (oz-in / mNm): | 7 / 49.4 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 100 |
| Step Angle: | 3.6° |
| Size / Dimension: | Round - 1.650" Dia (42.00mm) |
| Series: | 42M |
| Rotor Inertia: | 11.8gcm² |
| Other Names: | 403-1012 |
| Operating Temperature: | -20°C ~ 70°C |
| Mounting Hole Spacing: | 1.950" (49.48mm) |
| Length - Shaft and Bearing: | 0.450" (11.43mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Round Shaft |
| Diameter - Shaft: | 0.118" (3.00mm) |
| Detailed Description: | Bipolar Stepper Motor 400mA 5VDC |
| Current Rating: | 400mA |
| Coil Type: | Bipolar |
| Coil Resistance: | 12.5 Ohms |
| Approvals: | - |
| Accuracy: | ±11% |
| Email: | info@cjjhk.com |
Introduce
We can supply 42M100B1B, use the request quote form to request 42M100B1B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 42M100B1B.The price and lead time for 42M100B1B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 42M100B1B.We look forward to working with you to establish long-term relations of cooperation
