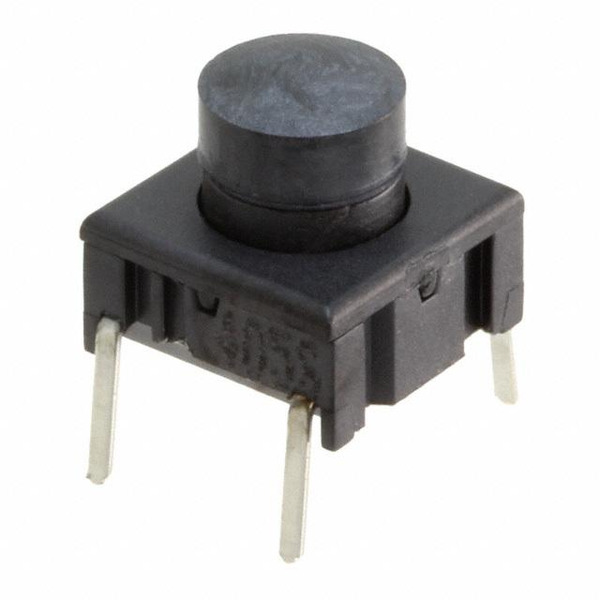

3ETH9-09.5
APEM Inc.
Images are for reference only.
See Product Specifications for product details.
Buy 3ETH9-09.5 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 3ETH9-09.5 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 3ETH9-09.5 |
|---|---|
| Manufacturer | APEM Inc. |
| Description | SWITCH TACTILE SPST-NO 0.05A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $3.26 | $3.138 | $2.886 | $2.51 | $2.385 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $2.322 | $2.259 | $1.757 | $1.632 | ||
Specifications
Data sheet
| Termination Style: | PC Pin |
|---|---|
| Switch Travel: | 1.00mm |
| Switch Function: | Off-Mom |
| Series: | Multimec® 3 |
| Packaging: | Tray |
| Outline: | 10.10mm x 10.10mm |
| Other Names: | 3ETH9-09.5-ND 3ETH909.5 679-3726 |
| Operating Temperature: | -40°C ~ 160°C |
| Operating Force: | 300gf |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 10,000,000 Cycles |
| Manufacturer Standard Lead Time: | 29 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP67 - Dust Tight, Waterproof |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Sealed - Flux Protection |
| Detailed Description: | Tactile Switch SPST-NO Top Actuated Through Hole |
| Contact Rating @ Voltage: | 0.05A @ 24VDC |
| Circuit: | SPST-NO |
| Actuator Type: | Standard |
| Actuator Orientation: | Top Actuated |
| Actuator Material: | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle: | - |
| Actuator Height off PCB, Vertical: | 9.50mm |
| Email: | info@cjjhk.com |
