39860-0504
Affinity Medical Technologies - a Molex company

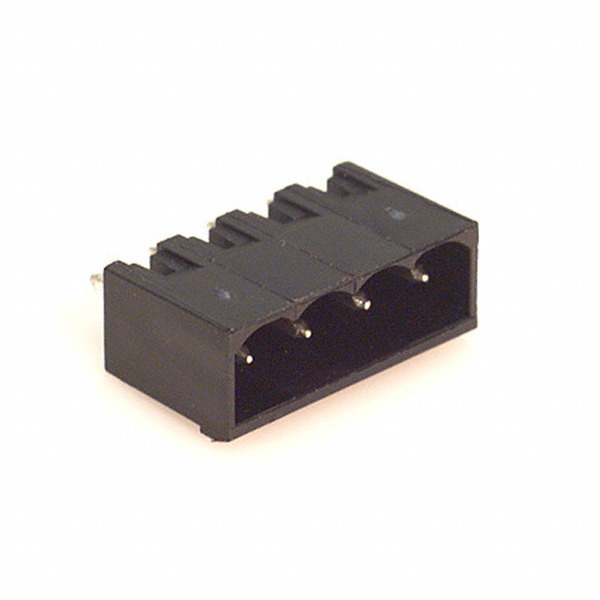

Images are for reference only.
See Product Specifications for product details.
Buy 39860-0504 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 39860-0504 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 39860-0504 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK HDR 4POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $1.01 | |||||
Specifications
Data sheet
| Wire Strip Length: | - |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | - |
| Voltage - UL: | 300V |
| Type: | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw: | - |
| Termination Style: | Solder |
| Series: | Eurostyle 39860 |
| Screw Size: | - |
| Positions Per Level: | 4 |
| Plug Wire Entry: | - |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | 039860-0504 039860-0504-E 0398600504 0398600504-E 39860-0504-E 398600504 398600504-E 861604 WM5848 |
| Operating Temperature: | 110°C |
| Number of Positions: | 4 |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.470" (11.94mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | Vertical |
| Features: | - |
| Detailed Description: | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL: | 15A |
| Current - IEC: | - |
| Contact Tail Length: | 0.170" (4.32mm) |
| Contact Mating Finish: | Tin |
| Contact Material: | Brass |
| Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply 39860-0504, use the request quote form to request 39860-0504 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 39860-0504.The price and lead time for 39860-0504 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 39860-0504.We look forward to working with you to establish long-term relations of cooperation
