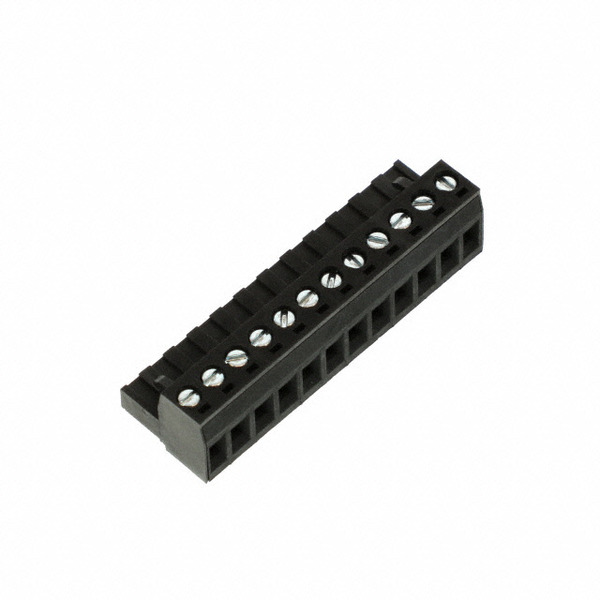

39520-0012
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 39520-0012 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 39520-0012 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 39520-0012 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | TERM BLOCK PLUG 12POS STR 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.67 | $6.048 | $5.752 | $5.222 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $5.015 | $4.425 | $4.13 | $3.835 | ||
Specifications
Data sheet
| Wire Strip Length: | 6.5mm |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | 12-30 AWG |
| Voltage - UL: | 300V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | 0.56 Nm (5.0 Lb-In) |
| Termination Style: | Screw - Rising Cage Clamp |
| Series: | Eurostyle ESE 39520 |
| Screw Size: | - |
| Positions Per Level: | 12 |
| Plug Wire Entry: | 180° |
| Pitch: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | 039520-0012 039520-0012-E 0395200012 0395200012-E 39520-0012-E 395200012 395200012-E WM7798 |
| Operating Temperature: | -40°C ~ 115°C |
| Number of Positions: | 12 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.591" (15.00mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Header Orientation: | - |
| Features: | Retention Latches (Non-Wire Side) |
| Detailed Description: | 12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - UL: | 18A |
| Current - IEC: | - |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | Phosphor Bronze |
| Color: | Black |
| Email: | info@cjjhk.com |
Introduce
We can supply 39520-0012, use the request quote form to request 39520-0012 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 39520-0012.The price and lead time for 39520-0012 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 39520-0012.We look forward to working with you to establish long-term relations of cooperation
