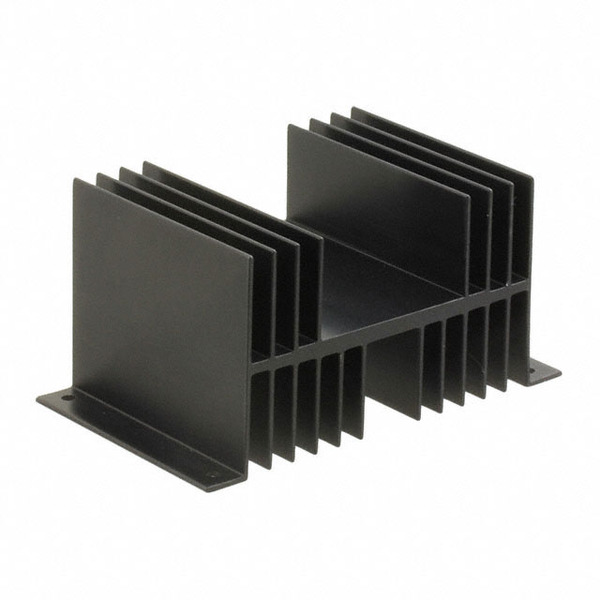

395-1AB
Wakefield-Vette
Images are for reference only.
See Product Specifications for product details.
Buy 395-1AB with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 395-1AB with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 395-1AB |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | HEATSINK 3X5X2.5" POWER/IGBT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $22.71 | $21.445 | $20.184 | $18.922 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $17.661 | $16.399 | $16.084 | |||
Specifications
Data sheet
| Width: | 5.000" (127.00mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | 1.10°C/W |
| Thermal Resistance @ Forced Air Flow: | 0.50°C/W @ 500 LFM |
| Shape: | Rectangular, Fins |
| Series: | 395 |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | Power Modules |
| Other Names: | 345-1177 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Finish: | Black Anodized |
| Material: | Aluminum |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length: | 3.000" (76.20mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 2.500" (63.50mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink Power Modules Aluminum Board Level |
| Attachment Method: | Bolt On |
| Email: | info@cjjhk.com |
Introduce
We can supply 395-1AB, use the request quote form to request 395-1AB pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 395-1AB.The price and lead time for 395-1AB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 395-1AB.We look forward to working with you to establish long-term relations of cooperation
