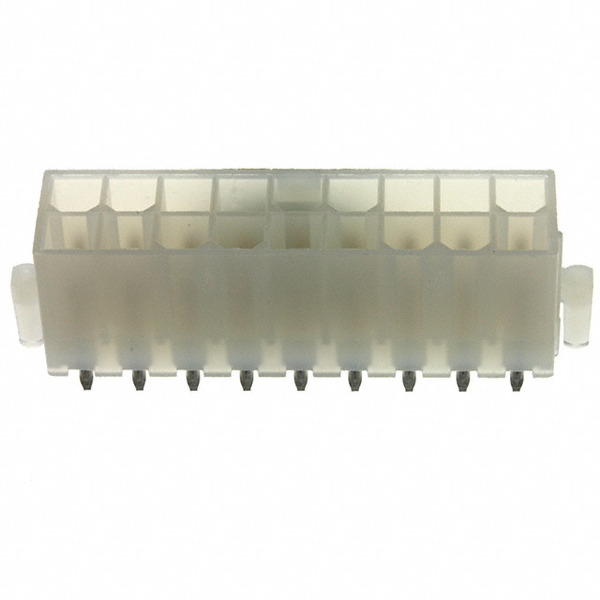

39-29-9184
Affinity Medical Technologies - a Molex company
Images are for reference only.
See Product Specifications for product details.
Buy 39-29-9184 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 39-29-9184 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 39-29-9184 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 18POS 4.2MM STR GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $6.29 | $6.026 | $4.978 | $4.192 | $3.668 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | Mini-Fit Jr 5566 |
| Row Spacing - Mating: | 0.165" (4.20mm) |
| Pitch - Mating: | 0.165" (4.20mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 0039-29-9184 0039-29-9184-E 0039299184 0039299184-E 39-29-9184-E 39299184 39299184-E A556618B2GS WM7343 |
| Operating Temperature: | - |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 18 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-2 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Insulation Height: | 0.504" (12.80mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Board Lock |
| Fastening Type: | Locking Ramp |
| Detailed Description: | Connector Header Through Hole 18 position 0.165" (4.20mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.138" (3.50mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | General Purpose, Industrial, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 39-29-9184, use the request quote form to request 39-29-9184 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 39-29-9184.The price and lead time for 39-29-9184 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 39-29-9184.We look forward to working with you to establish long-term relations of cooperation
