380635-1
Agastat Relays / TE Connectivity

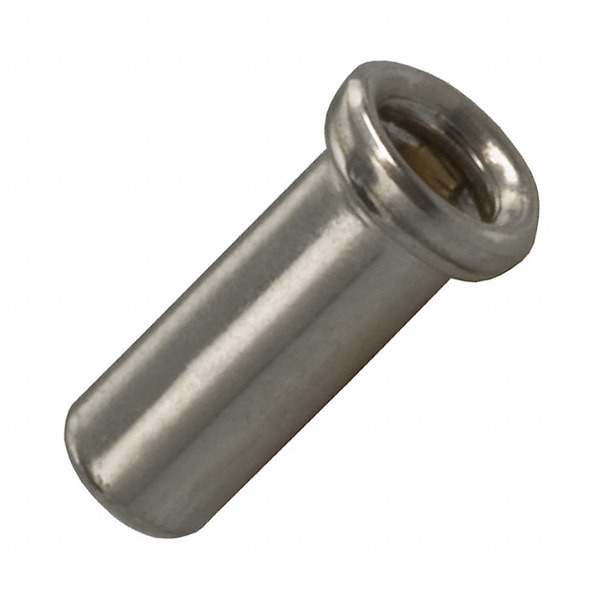

Images are for reference only.
See Product Specifications for product details.
Buy 380635-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 380635-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 380635-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .018-.040 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.67 | $1.517 | $1.424 | $1.363 | $1.301 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.177 | $1.084 | $0.929 | $0.867 | ||
Specifications
Data sheet
| Termination: | Solder |
|---|---|
| Tail Type: | No Tail |
| Tail Diameter: | - |
| Socket Depth: | 0.145" (3.68mm) |
| Series: | - |
| Pin Hole Diameter: | 0.048" (1.22mm) |
| Packaging: | Bulk |
| Other Names: | 380635-1-ND 3806351 A29075 |
| Operating Temperature: | -65°C ~ 126°C |
| Mounting Hole Diameter: | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Length - Overall: | 0.236" (6.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Force: | 0.12N ~ 0.34N |
| Flange Diameter: | 0.125" (3.18mm) |
| Features: | - |
| Detailed Description: | Pin Receptacle Connector 0.018" ~ 0.040" (0.46mm ~ 1.02mm) No Tail Solder |
| Contact Material: | Beryllium Copper |
| Contact Finish Thickness: | 30.0µin (0.76µm) |
| Contact Finish: | Gold |
| Board Thickness: | 0.156" (3.96mm) |
| Accepts Square Pin Size: | - |
| Accepts Pin Diameter: | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 380635-1, use the request quote form to request 380635-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 380635-1.The price and lead time for 380635-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 380635-1.We look forward to working with you to establish long-term relations of cooperation
