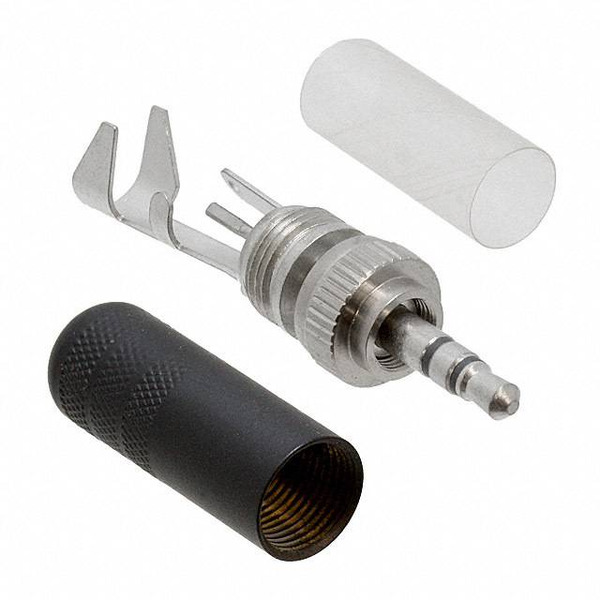

35HDLBN
Conxall / Switchcraft
Images are for reference only.
See Product Specifications for product details.
Buy 35HDLBN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 35HDLBN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 35HDLBN |
|---|---|
| Manufacturer | Conxall / Switchcraft |
| Description | CONN PLUG STEREO 3.5MM 3COND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $9.59 | $7.726 | $7.024 | $6.673 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.497 | $5.795 | $5.707 | |||
Specifications
Data sheet
| Voltage - Rated: | 250VAC, 140VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder Eyelet(s) |
| Signal Lines: | Stereo (3 Conductor, TRS) |
| Shielding: | Unshielded |
| Series: | 35HD |
| Panel Hole Size: | - |
| Packaging: | Bulk |
| Other Names: | SC1486 |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Positions/Contacts: | 3 Conductors, 3 Contacts |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | 0.560" (14.20mm) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | - |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes: | 3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube |
| Housing Material: | Copper Alloy |
| Gender: | Male |
| Features: | - |
| Detailed Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Current Rating: | 4A |
| Contact Material - Plating: | Silver |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Plug |
| Cable Opening: | 0.290" (7.37mm) |
| Body Material: | Copper Alloy |
| Body Color: | Silver, Black |
| Actual Diameter: | 0.139" (3.53mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 35HDLBN, use the request quote form to request 35HDLBN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 35HDLBN.The price and lead time for 35HDLBN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 35HDLBN.We look forward to working with you to establish long-term relations of cooperation
