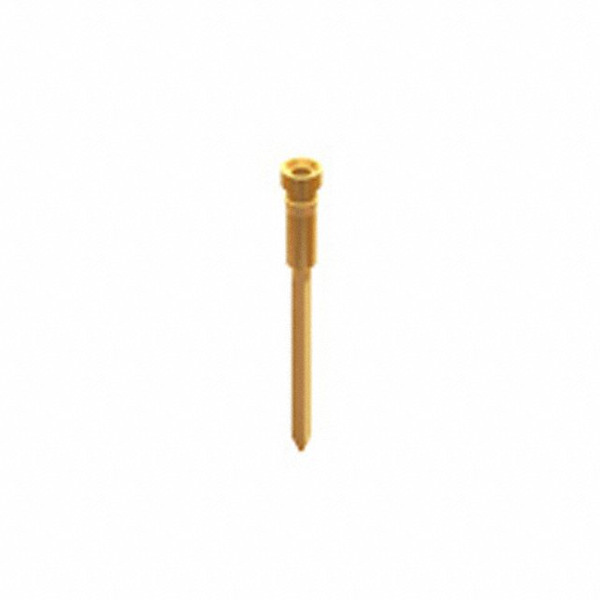

3506
Keystone Electronics Corp.
Images are for reference only.
See Product Specifications for product details.
Buy 3506 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 3506 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 3506 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .015-.025 PRESSFIT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.269 | |||||
Specifications
Data sheet
| Termination: | Press-Fit |
|---|---|
| Tail Type: | Standard Tail |
| Tail Diameter: | 0.025" (0.64mm) Square |
| Socket Depth: | 0.160" (4.06mm) |
| Series: | - |
| Pin Hole Diameter: | - |
| Packaging: | Bulk |
| Other Names: | 3506K 3506K-ND 36-3506 |
| Operating Temperature: | - |
| Mounting Hole Diameter: | 0.055" (1.40mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Overall: | 0.703" (17.86mm) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insertion Force: | - |
| Flange Diameter: | 0.072" (1.83mm) |
| Features: | - |
| Detailed Description: | Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit |
| Contact Material: | Beryllium Copper |
| Contact Finish Thickness: | 200.0µin (5.08µm) |
| Contact Finish: | Tin-Lead |
| Board Thickness: | - |
| Accepts Square Pin Size: | - |
| Accepts Pin Diameter: | 0.015" ~ 0.025" (0.38mm ~ 0.64mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 3506, use the request quote form to request 3506 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 3506.The price and lead time for 3506 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 3506.We look forward to working with you to establish long-term relations of cooperation
