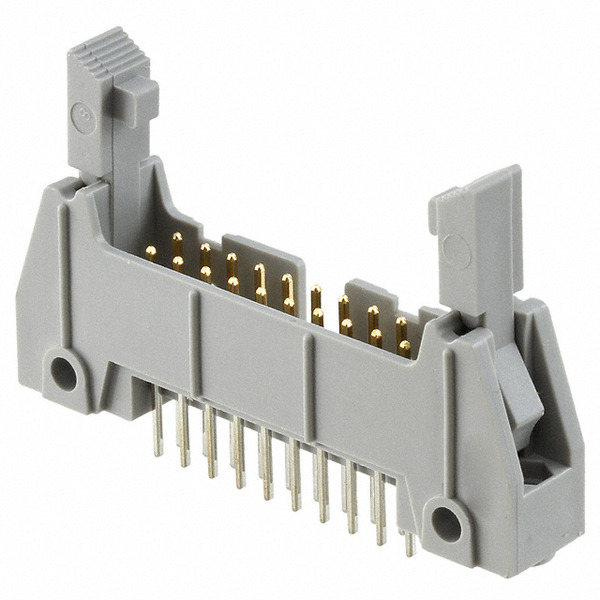

3428-6302
3M
Images are for reference only.
See Product Specifications for product details.
Buy 3428-6302 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 3428-6302 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 3428-6302 |
|---|---|
| Manufacturer | 3M |
| Description | CONN HEADER 20POS STR LONG LATCH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | 600 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $4.50 | $4.32 | $3.15 | $3.06 | $2.61 | |
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 3000 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.652" (16.56mm) |
| Other Names: | 00076308635145 05113861631 05400732722 07630863514 3428-6302-ND 3428-6602 3428-6602-ND 34286302 34286602 3M15471 3M15472 3M15472-ND 5113861631 51138616311 5400732722 54007327226 7010349327 80001414723 80610097109 80610469456 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 20 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height: | 0.680" (17.27mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot, Mounting Flange |
| Fastening Type: | Latch Lock/Eject Hooks, Long |
| Detailed Description: | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating: | 1A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
