3428-5002
3M

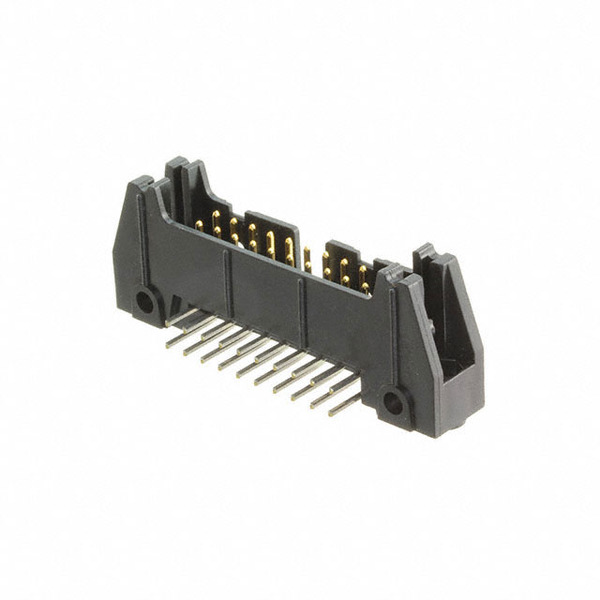

Images are for reference only.
See Product Specifications for product details.
Buy 3428-5002 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 3428-5002 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 3428-5002 |
|---|---|
| Manufacturer | 3M |
| Description | Header, PCB Plug, 20 Cont, Solder Tail, Thru-Hole, 3000 Series, Four-Wall, Right, Gray |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $3.514 | $3.172 | $2.861 | $2.799 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 3000 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 00076308634995 07630863499 34285002 5400732708 54007327080 7010349325 80-6100-9696-0 80001414574 80610096960 MHR20G MHR20K |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 20 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height: | 0.340" (8.64mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot, Mounting Flange |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm) |
| Current Rating: | 1.75A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.112" (2.84mm) |
| Contact Length - Mating: | 0.240" (6.10mm) |
| Contact Finish Thickness - Post: | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 3428-5002, use the request quote form to request 3428-5002 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 3428-5002.The price and lead time for 3428-5002 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 3428-5002.We look forward to working with you to establish long-term relations of cooperation
