3301-2-14-21-00-00-08-0
Mill-Max

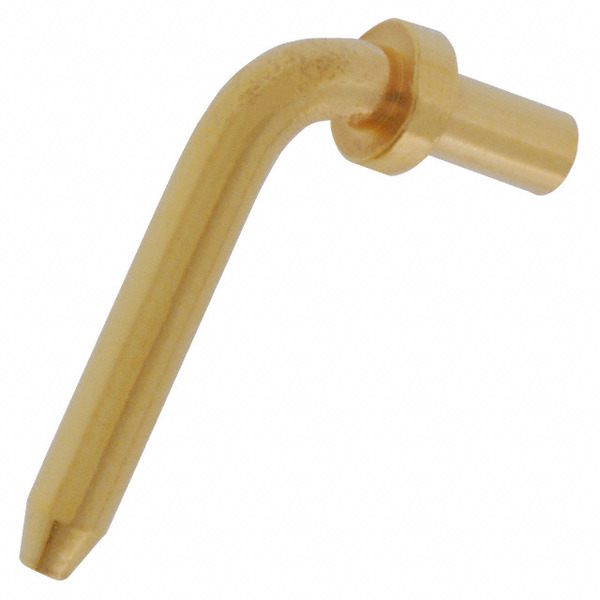

Images are for reference only.
See Product Specifications for product details.
Buy 3301-2-14-21-00-00-08-0 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 3301-2-14-21-00-00-08-0 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 3301-2-14-21-00-00-08-0 |
|---|---|
| Manufacturer | Mill-Max |
| Description | CONN PC PIN CIRC 0.040DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.48 | $0.451 | $0.387 | $0.329 | $0.316 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.284 | $0.271 | $0.226 | $0.206 | ||
Specifications
Data sheet
| Termination: | Swage |
|---|---|
| Terminal Type: | PC Pin |
| Terminal Style: | Single End |
| Series: | 3301 |
| Pin Size - Below Flange: | - |
| Pin Size - Above Flange: | 0.040" (1.02mm) Dia |
| Packaging: | Bulk |
| Other Names: | 3.30121E+15 3301-2-14-21-00-00-0 3301-2-14-21-0000080 3301214210000080 ED5058 |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Hole Diameter: | 0.043" (1.09mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | - |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Overall: | - |
| Length - Below Flange: | 0.082" (2.08mm) |
| Length - Above Flange: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | - |
| Insulation: | Non-Insulated |
| Flange Diameter: | 0.070" (1.77mm) |
| Detailed Description: | PC Pin Terminal Connector Through Hole, Right Angle Gold 0.040" (1.02mm) Dia |
| Contact Material: | Brass Alloy |
| Contact Finish Thickness: | 20.0µin (0.51µm) |
| Contact Finish: | Gold |
| Board Thickness: | 0.062" (1.57mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 3301-2-14-21-00-00-08-0, use the request quote form to request 3301-2-14-21-00-00-08-0 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 3301-2-14-21-00-00-08-0.The price and lead time for 3301-2-14-21-00-00-08-0 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 3301-2-14-21-00-00-08-0.We look forward to working with you to establish long-term relations of cooperation
