316020003
Seeed

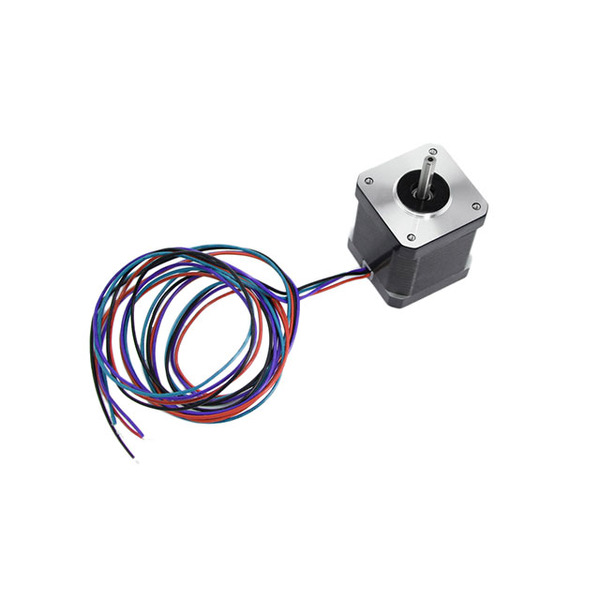

Images are for reference only.
See Product Specifications for product details.
Buy 316020003 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 316020003 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 316020003 |
|---|---|
| Manufacturer | Seeed |
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Weight: | 0.827 lb (375.12g) |
|---|---|
| Voltage - Rated: | 24VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 76.38 / 539.37 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 200 |
| Step Angle: | 1.8° |
| Size / Dimension: | Square - 1.665" x 1.665" (42.30mm x 42.30mm) |
| Series: | - |
| Rotor Inertia: | - |
| Other Names: | 1597-1358 316020003-ND |
| Operating Temperature: | - |
| NEMA Frame Size: | 17 |
| Mounting Hole Spacing: | 1.220" (31.00mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Length - Shaft and Bearing: | 0.867" (22.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Round Shaft |
| Diameter - Shaft: | 0.197" (5.00mm) |
| Detailed Description: | Bipolar Stepper Motor 200 Step 1.5A 24VDC |
| Current Rating: | 1.5A |
| Coil Type: | Bipolar |
| Coil Resistance: | 1.6 Ohms |
| Approvals: | - |
| Accuracy: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 316020003, use the request quote form to request 316020003 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 316020003.The price and lead time for 316020003 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 316020003.We look forward to working with you to establish long-term relations of cooperation
