302-R101
On-Shore Technology, Inc.

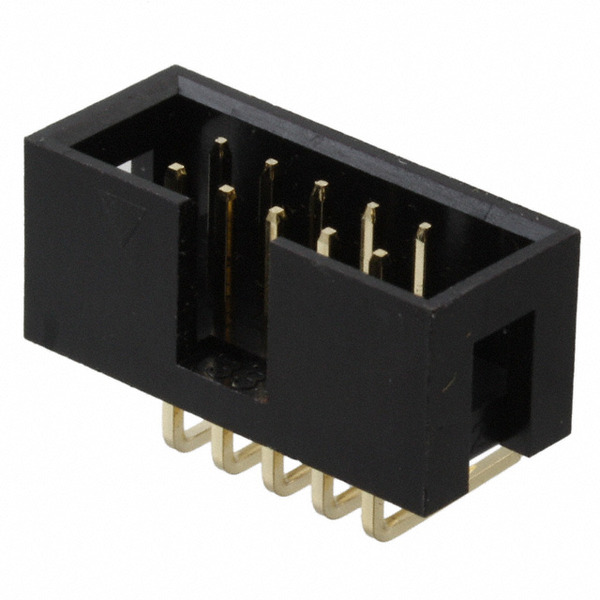

Images are for reference only.
See Product Specifications for product details.
Buy 302-R101 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 302-R101 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 302-R101 |
|---|---|
| Manufacturer | On-Shore Technology, Inc. |
| Description | CONN HEADER R/A 10POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 260 pcs | 520 pcs | |
|---|---|---|---|---|---|
| $0.51 | $0.48 | $0.336 | $0.32 | ||
| 1040 pcs | 5200 pcs | 10140 pcs | |||
| $0.264 | $0.232 | $0.216 | |||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | 302 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Tray |
| Overall Contact Length: | - |
| Other Names: | 302R101 ED10533 |
| Operating Temperature: | -40°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 10 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyester, Glass Filled |
| Insulation Height: | 0.358" (9.10mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Keying Slot |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.122" (3.10mm) |
| Contact Length - Mating: | - |
| Contact Finish Thickness - Post: | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Gold |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 302-R101, use the request quote form to request 302-R101 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 302-R101.The price and lead time for 302-R101 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 302-R101.We look forward to working with you to establish long-term relations of cooperation
