2SP0320T2A0-17
Power Integrations

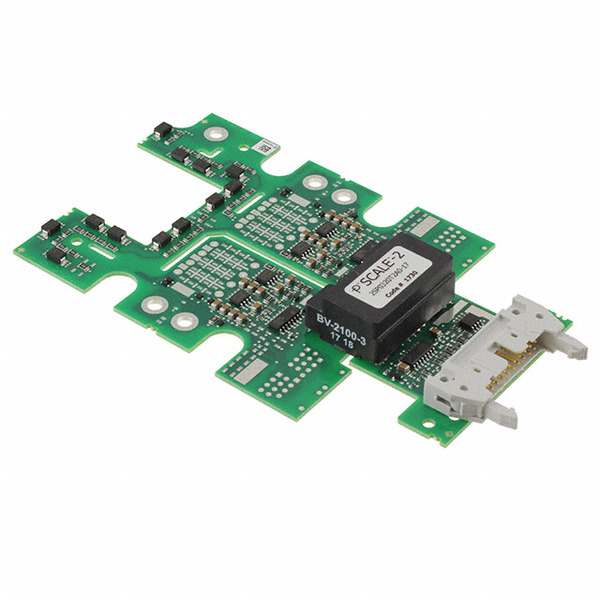

Images are for reference only.
See Product Specifications for product details.
Buy 2SP0320T2A0-17 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SP0320T2A0-17 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2SP0320T2A0-17 |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC DUAL GATE DRIVER 20A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $162.60 | $154.753 | $149.146 | |||
Specifications
Data sheet
| Voltage - Supply: | 14.5 V ~ 15.5 V |
|---|---|
| Supplier Device Package: | Module |
| Series: | SCALE™-2 |
| Rise / Fall Time (Typ): | 7ns, 25ns |
| Packaging: | Tray |
| Package / Case: | Module |
| Other Names: | 1810-1047 |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Number of Drivers: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Logic Voltage - VIL, VIH: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Type: | - |
| High Side Voltage - Max (Bootstrap): | 1700V |
| Gate Type: | IGBT |
| Driven Configuration: | Half-Bridge |
| Detailed Description: | Half-Bridge Gate Driver IC Module |
| Current - Peak Output (Source, Sink): | 20A, 20A |
| Channel Type: | Independent |
| Email: | info@cjjhk.com |
Introduce
We can supply 2SP0320T2A0-17, use the request quote form to request 2SP0320T2A0-17 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SP0320T2A0-17.The price and lead time for 2SP0320T2A0-17 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SP0320T2A0-17.We look forward to working with you to establish long-term relations of cooperation
