2SD1060S-1E
AMI Semiconductor / ON Semiconductor

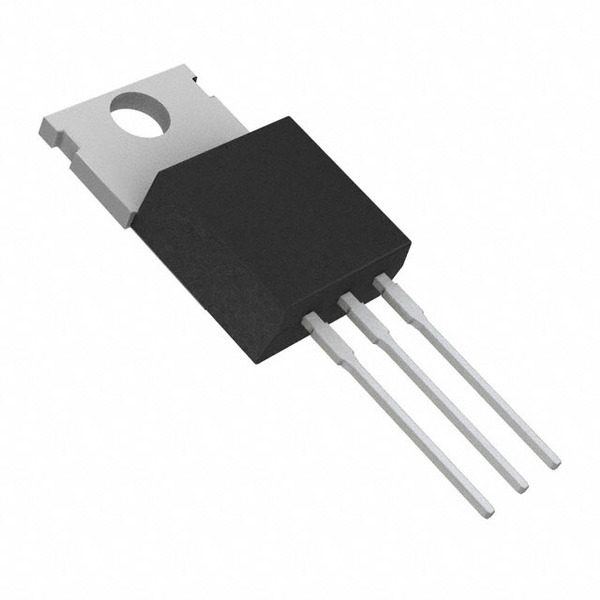

Images are for reference only.
See Product Specifications for product details.
Buy 2SD1060S-1E with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2SD1060S-1E with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2SD1060S-1E |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 50V 5A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.44 | $1.22 | $1.002 | $0.828 | $0.654 | |
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 50V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 300mV @ 300mA, 3A |
| Transistor Type: | NPN |
| Supplier Device Package: | TO-220-3 |
| Series: | - |
| Power - Max: | 1.75W |
| Packaging: | Tube |
| Package / Case: | TO-220-3 |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 42 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency - Transition: | 30MHz |
| Detailed Description: | Bipolar (BJT) Transistor NPN 50V 5A 30MHz 1.75W Through Hole TO-220-3 |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 140 @ 1A, 2V |
| Current - Collector Cutoff (Max): | 100µA (ICBO) |
| Current - Collector (Ic) (Max): | 5A |
| Email: | info@cjjhk.com |
Introduce
We can supply 2SD1060S-1E, use the request quote form to request 2SD1060S-1E pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD1060S-1E.The price and lead time for 2SD1060S-1E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD1060S-1E.We look forward to working with you to establish long-term relations of cooperation
