2N5302G
AMI Semiconductor / ON Semiconductor

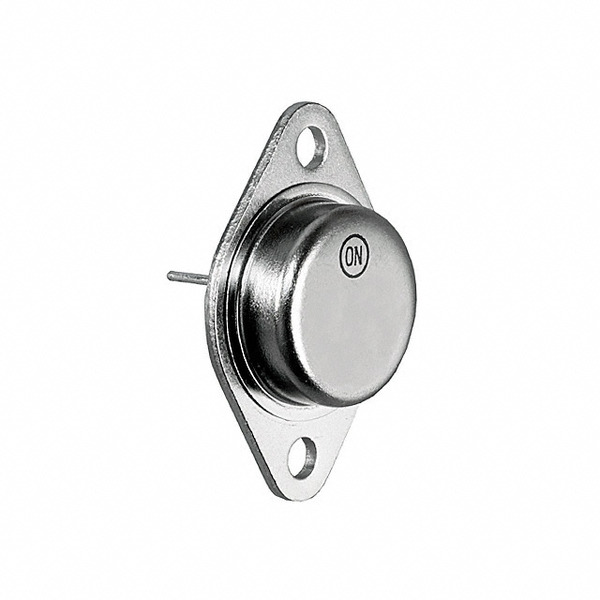

Images are for reference only.
See Product Specifications for product details.
Buy 2N5302G with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2N5302G with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2N5302G |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS NPN 60V 30A TO3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.60 | $4.133 | $3.386 | $2.882 | $2.431 | |
Specifications
Data sheet
| Voltage - Collector Emitter Breakdown (Max): | 60V |
|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 3V @ 6A, 30A |
| Transistor Type: | NPN |
| Supplier Device Package: | TO-204 (TO-3) |
| Series: | - |
| Power - Max: | 200W |
| Packaging: | Tray |
| Package / Case: | TO-204AA, TO-3 |
| Other Names: | 2N5302GOS |
| Operating Temperature: | -65°C ~ 200°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 2 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Frequency - Transition: | 2MHz |
| Detailed Description: | Bipolar (BJT) Transistor NPN 60V 30A 2MHz 200W Through Hole TO-204 (TO-3) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 15 @ 15A, 2V |
| Current - Collector Cutoff (Max): | 5mA |
| Current - Collector (Ic) (Max): | 30A |
| Base Part Number: | 2N5302 |
| Email: | info@cjjhk.com |
Introduce
We can supply 2N5302G, use the request quote form to request 2N5302G pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N5302G.The price and lead time for 2N5302G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N5302G.We look forward to working with you to establish long-term relations of cooperation
