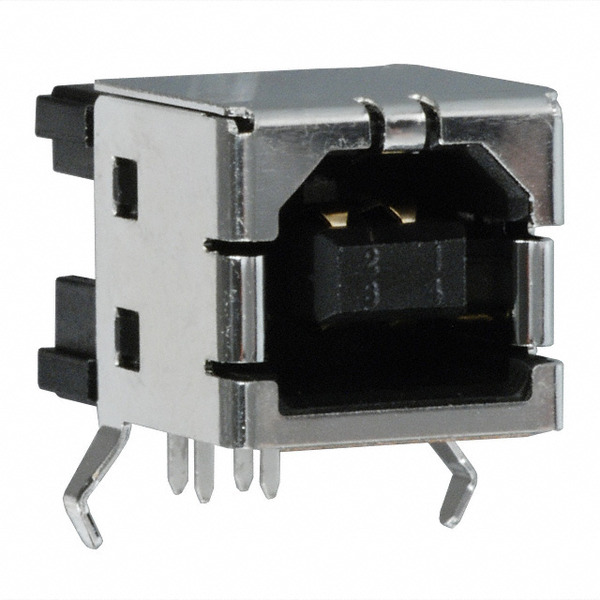

292304-1
AMP Connectors / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 292304-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 292304-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 292304-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Description | Usb Connector, 4 Contact(S), Female, Right Angle, Solder Terminal, Guide Slot, Receptacle |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.254 | $1.132 | $1.021 | $0.999 | ||
Specifications
Data sheet
| Voltage - Rated: | 30VAC |
|---|---|
| Termination: | Solder |
| Specifications: | USB 2.0 |
| Shielding: | Shielded |
| Shell/Shielding Material: | Copper Alloy |
| Series: | - |
| Packaging: | Tray |
| Other Names: | 2923041 A31725 |
| Operating Temperature: | -55°C ~ 85°C |
| Number of Ports: | 1 |
| Number of Contacts: | 4 |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | Horizontal |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Cycles: | 1500 |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Gender: | Receptacle |
| Features: | Board Lock |
| Detailed Description: | USB - B USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle |
| Current Rating: | 1A per Contact |
| Contact Finish: | Gold or Gold-Palladium |
| Connector Type: | USB - B |
| Email: | info@cjjhk.com |
Introduce
We can supply 292304-1, use the request quote form to request 292304-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 292304-1.The price and lead time for 292304-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 292304-1.We look forward to working with you to establish long-term relations of cooperation
