284047-6
Agastat Relays / TE Connectivity

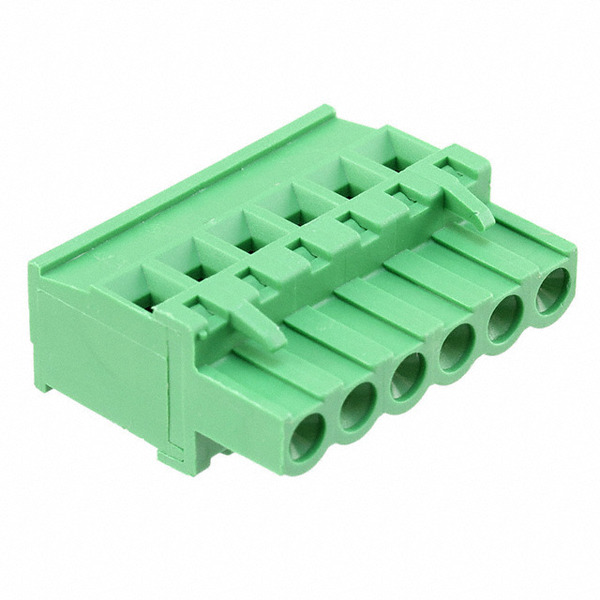

Images are for reference only.
See Product Specifications for product details.
Buy 284047-6 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 284047-6 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 284047-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 6POS 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.51 | $5.921 | $5.632 | $5.112 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.91 | $4.332 | $4.043 | $3.755 | ||
Specifications
Data sheet
| Wire Strip Length: | 6-7.5mm |
|---|---|
| Wire Gauge or Range - mm²: | 0.05-3mm² |
| Wire Gauge or Range - AWG: | 12-30 AWG |
| Voltage - UL: | 300V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | 0.79 Nm (7.0 Lb-In) |
| Termination Style: | Screw - Rising Cage Clamp |
| Series: | Buchanan |
| Screw Size: | M3 |
| Positions Per Level: | 6 |
| Plug Wire Entry: | 90° |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | 284047-6-ND A113359 |
| Operating Temperature: | -40°C ~ 110°C |
| Number of Positions: | 6 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 30 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.984" (25.00mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Header Orientation: | - |
| Features: | Retention Latches (Wire Side) |
| Detailed Description: | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Current - UL: | 15A |
| Current - IEC: | - |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | Phosphor Bronze |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply 284047-6, use the request quote form to request 284047-6 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 284047-6.The price and lead time for 284047-6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 284047-6.We look forward to working with you to establish long-term relations of cooperation
