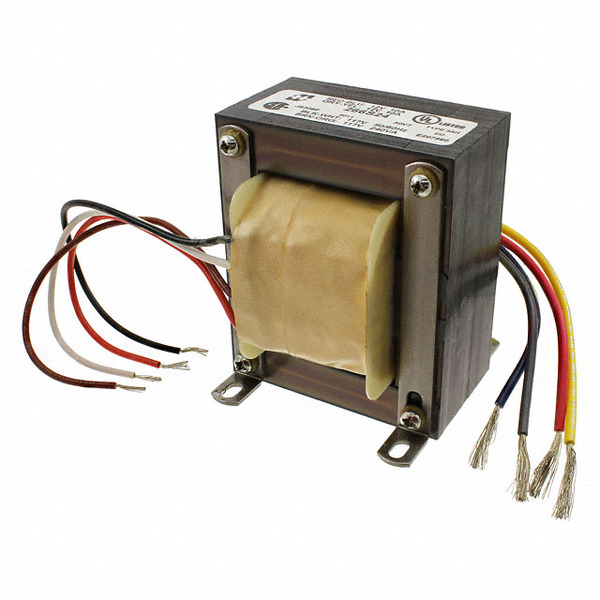

266S24
Hammond Manufacturing
Images are for reference only.
See Product Specifications for product details.
Buy 266S24 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 266S24 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 266S24 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR LAMINATED 240VA CHAS MOUNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $108.29 | $104.676 | $97.456 | $90.238 | ||
Specifications
Data sheet
| Weight: | 8.6 lbs (3.9kg) |
|---|---|
| Voltage - Secondary (Full Load): | Parallel 12V, Series 24V |
| Voltage - Primary: | 117V, 234V |
| Voltage - Isolation: | 2000Vrms |
| Type: | Laminated Core |
| Termination Style: | Wire Leads |
| Size / Dimension: | 87.38mm L x 91.44mm W |
| Series: | 266 |
| Secondary Winding(s): | Dual |
| Primary Winding(s): | Dual |
| Power - Max: | 240 VA |
| Other Names: | 266S24-ND HM2143 |
| Mounting Type: | Chassis Mount |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 109.22mm |
| Current - Output (Max): | Parallel 20A, Series 10A |
| Center Tap: | No |
| Email: | info@cjjhk.com |
Introduce
We can supply 266S24, use the request quote form to request 266S24 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 266S24.The price and lead time for 266S24 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 266S24.We look forward to working with you to establish long-term relations of cooperation
