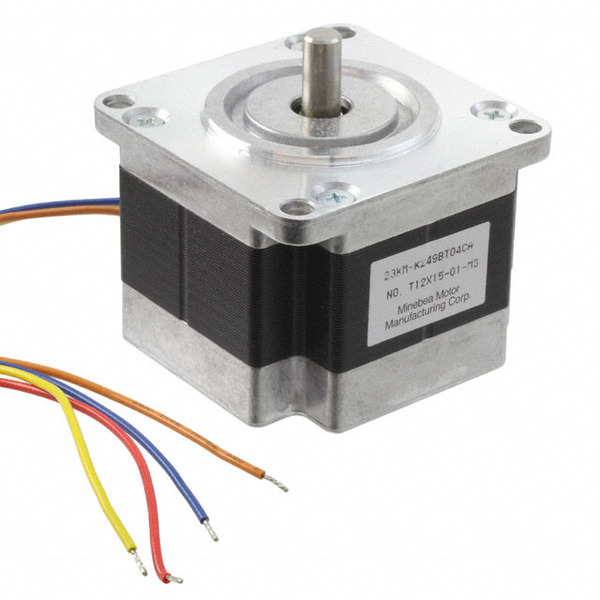

23KM-K249BT04CA
NMB Technologies Corp.
Images are for reference only.
See Product Specifications for product details.
Buy 23KM-K249BT04CA with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 23KM-K249BT04CA with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 23KM-K249BT04CA |
|---|---|
| Manufacturer | NMB Technologies Corp. |
| Description | STEPPER MOTOR HYBRID BIPOLAR 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 25 pcs | ||||
|---|---|---|---|---|---|
| $59.188 | |||||
Specifications
Data sheet
| Weight: | 1.1 lbs (499g) |
|---|---|
| Voltage - Rated: | 24VDC |
| Type: | Hybrid |
| Torque - Holding (oz-in / mNm): | 76.5 / 540 |
| Termination Style: | Wire Leads |
| Steps per Revolution: | 200 |
| Step Angle: | 1.8° |
| Size / Dimension: | Square - 2.220" x 2.220" (56.40mm x 56.40mm) |
| Series: | 23KM |
| Rotor Inertia: | - |
| Other Names: | 23KM-K249B P16829 |
| Operating Temperature: | - |
| NEMA Frame Size: | 23 |
| Mounting Hole Spacing: | 1.856" (47.14mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Shaft and Bearing: | 0.551" (14.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | Flatted Shaft |
| Diameter - Shaft: | 0.315" (8.00mm) |
| Detailed Description: | Bipolar Stepper Motor Frame Size 23 200 Step 24VDC |
| Coil Type: | Bipolar |
| Coil Resistance: | 2.4 Ohms |
| Approvals: | - |
| Accuracy: | ±5% |
| Email: | info@cjjhk.com |
Introduce
We can supply 23KM-K249BT04CA, use the request quote form to request 23KM-K249BT04CA pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 23KM-K249BT04CA.The price and lead time for 23KM-K249BT04CA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 23KM-K249BT04CA.We look forward to working with you to establish long-term relations of cooperation
