2358-6221-TG
3M

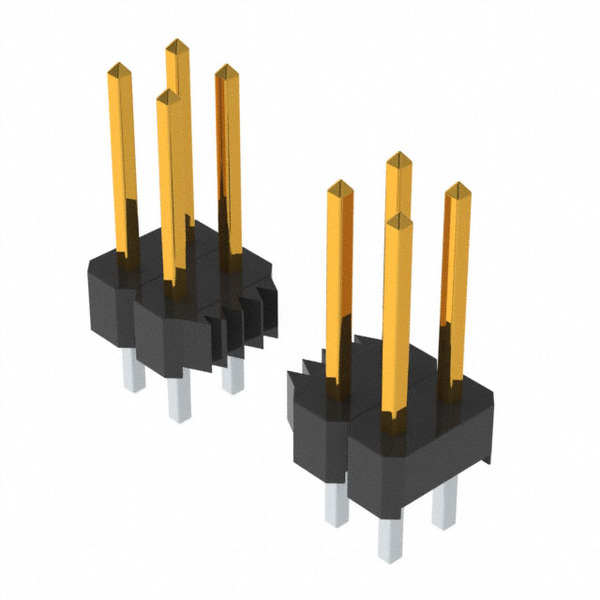

Images are for reference only.
See Product Specifications for product details.
Buy 2358-6221-TG with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2358-6221-TG with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2358-6221-TG |
|---|---|
| Manufacturer | 3M |
| Description | PIN STRIP HEADER 58 PIN STRAIGHT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $3.78 | $3.386 | $2.789 | $2.204 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $1.892 | $1.726 | $1.66 | |||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Shrouding: | Unshrouded |
| Series: | 2300 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Pitch - Mating: | 0.100" (2.54mm) |
| Packaging: | Bulk |
| Overall Contact Length: | 0.538" (13.67mm) |
| Other Names: | 00051115582592 05111558259 2358-6221-TG-ND 3M156421-58 SE008018126 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 58 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic, Glass Filled |
| Insulation Height: | 0.100" (2.54mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 58 position 0.100" (2.54mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Copper Alloy |
| Contact Length - Post: | 0.120" (3.05mm) |
| Contact Length - Mating: | 0.318" (8.08mm) |
| Contact Finish Thickness - Post: | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 2358-6221-TG, use the request quote form to request 2358-6221-TG pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2358-6221-TG.The price and lead time for 2358-6221-TG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2358-6221-TG.We look forward to working with you to establish long-term relations of cooperation
