22-43-6030
Affinity Medical Technologies - a Molex company

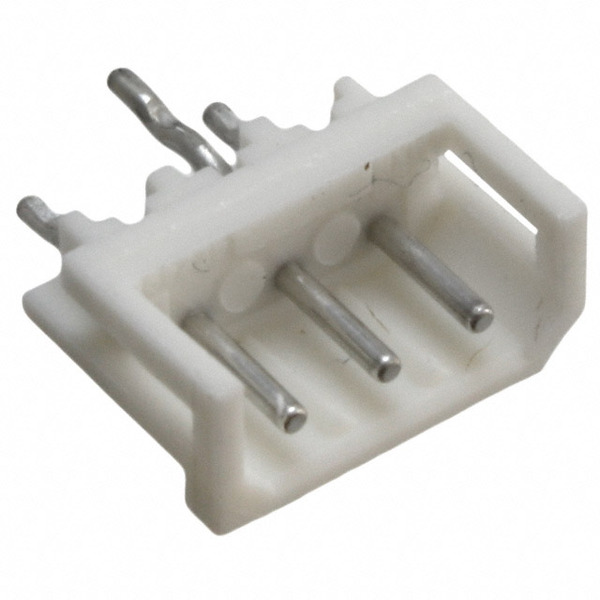

Images are for reference only.
See Product Specifications for product details.
Buy 22-43-6030 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 22-43-6030 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 22-43-6030 |
|---|---|
| Manufacturer | Molex |
| Description | 2.50mm Pitch SPOX Header, Shrouded, Staggered Footprint, 3 Circuits, White |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.249 | $0.224 | $0.202 | $0.198 | ||
Specifications
Data sheet
| Voltage Rating: | - |
|---|---|
| Termination: | Kinked Pin, Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 3 Wall |
| Series: | SPOX 42249 |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.098" (2.50mm) |
| Packaging: | Bulk |
| Overall Contact Length: | - |
| Other Names: | 0022436030 22-43-6030-ND 22436030 A-42249-3A WM4586 |
| Operating Temperature: | - |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 3 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyester, Glass Filled |
| Insulation Height: | 0.283" (7.19mm) |
| Insulation Color: | White |
| Ingress Protection: | - |
| Features: | - |
| Fastening Type: | Push-Pull |
| Detailed Description: | Connector Header Through Hole 3 position 0.098" (2.50mm) |
| Current Rating: | - |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | 0.130" (3.30mm) |
| Contact Length - Mating: | 0.138" (3.50mm) |
| Contact Finish Thickness - Post: | - |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Email: | info@cjjhk.com |
Introduce
We can supply 22-43-6030, use the request quote form to request 22-43-6030 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 22-43-6030.The price and lead time for 22-43-6030 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 22-43-6030.We look forward to working with you to establish long-term relations of cooperation
