207614-3
Agastat Relays / TE Connectivity

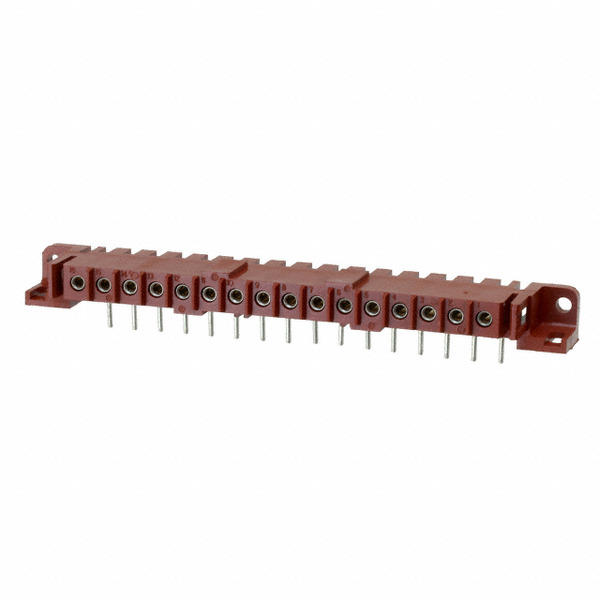

Images are for reference only.
See Product Specifications for product details.
Buy 207614-3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 207614-3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 207614-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SKT HDR ASSY,16 POSN,METRIMATE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage Rating: | 600V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Series: | Metrimate |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.197" (5.00mm) |
| Packaging: | Tray |
| Other Names: | 207614-3-ND A115047 |
| Operating Temperature: | -55°C ~ 130°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 16 |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Insulation Material: | Thermoplastic |
| Insulation Height: | 0.433" (11.00mm) |
| Insulation Color: | Red |
| Ingress Protection: | - |
| Features: | Mounting Flange |
| Fastening Type: | Latch Holder |
| Detailed Description: | 16 Position Header Connector 0.197" (5.00mm) Through Hole, Right Angle Gold |
| Current Rating: | 7.5A |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Phosphor Bronze |
| Contact Length - Post: | 0.186" (4.72mm) |
| Contact Finish Thickness - Post: | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | Tin-Lead |
| Contact Finish - Mating: | Gold |
| Connector Type: | Header |
| Applications: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 207614-3, use the request quote form to request 207614-3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 207614-3.The price and lead time for 207614-3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 207614-3.We look forward to working with you to establish long-term relations of cooperation
