2-326865-1
Agastat Relays / TE Connectivity

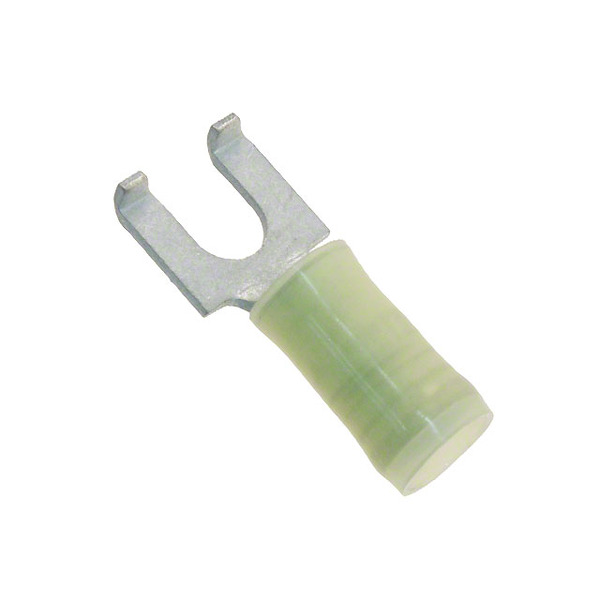

Images are for reference only.
See Product Specifications for product details.
Buy 2-326865-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2-326865-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2-326865-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #10 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | ||||
|---|---|---|---|---|---|
| $0.598 | |||||
Specifications
Data sheet
| Wire Gauge: | 10-12 AWG |
|---|---|
| Width - Outer Edges: | 0.416" (10.57mm) |
| Tongue Inside Opening: | 0.197" (5.00mm) |
| Termination: | Crimp |
| Terminal Type: | Flanged |
| Stud/Tab Size: | 10 Stud |
| Series: | PIDG |
| Packaging: | Tape & Reel (TR) |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Length - Termination: | 0.591" (15.01mm) |
| Length - Ring Center to Termination: | 0.250" (6.35mm) |
| Length - Overall: | 1.056" (26.82mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Yellow |
| Email: | info@cjjhk.com |
Introduce
We can supply 2-326865-1, use the request quote form to request 2-326865-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2-326865-1.The price and lead time for 2-326865-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2-326865-1.We look forward to working with you to establish long-term relations of cooperation
