2-324560-1
Agastat Relays / TE Connectivity

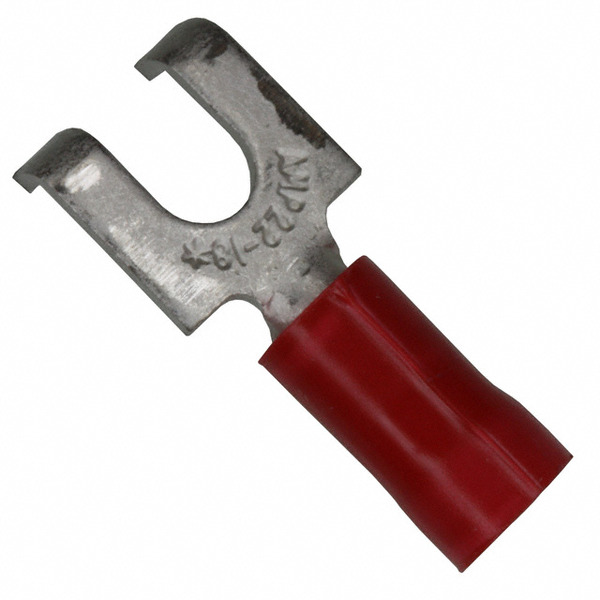

Images are for reference only.
See Product Specifications for product details.
Buy 2-324560-1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 2-324560-1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 2-324560-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #6 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.556 | |||||
Specifications
Data sheet
| Wire Gauge: | 16-22 AWG |
|---|---|
| Width - Outer Edges: | 0.328" (8.33mm) |
| Tongue Inside Opening: | 0.145" (3.68mm) |
| Termination: | Crimp |
| Terminal Type: | Flanged |
| Stud/Tab Size: | 6 Stud |
| Series: | Plasti-Grip |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 2-324560-1-ND A28249TR A28250 A28250-ND |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Length - Termination: | 0.416" (10.57mm) |
| Length - Ring Center to Termination: | 0.203" (5.16mm) |
| Length - Overall: | 0.780" (19.81mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 2-324560-1, use the request quote form to request 2-324560-1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2-324560-1.The price and lead time for 2-324560-1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2-324560-1.We look forward to working with you to establish long-term relations of cooperation
