1N5814
Microsemi

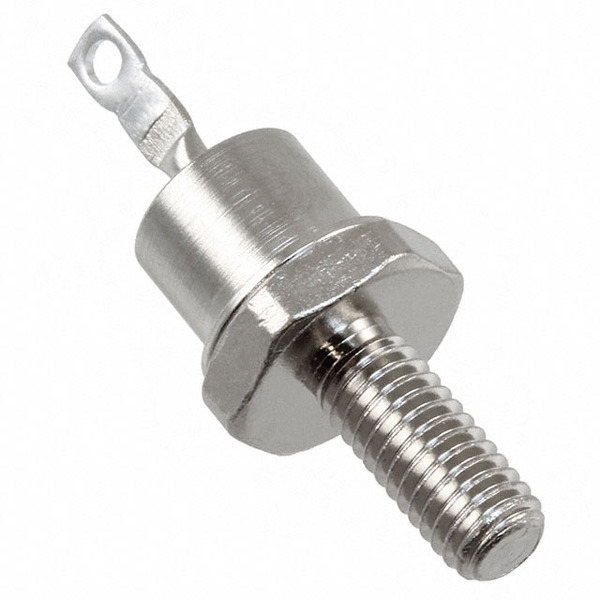

Images are for reference only.
See Product Specifications for product details.
Buy 1N5814 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1N5814 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1N5814 |
|---|---|
| Manufacturer | Microsemi |
| Description | DIODE GEN PURP 100V 20A DO203AA |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $46.305 | |||||
Specifications
Data sheet
| Voltage - Forward (Vf) (Max) @ If: | 950mV @ 20A |
|---|---|
| Voltage - DC Reverse (Vr) (Max): | 100V |
| Supplier Device Package: | DO-203AA |
| Speed: | Fast Recovery = 200mA (Io) |
| Series: | - |
| Reverse Recovery Time (trr): | 35ns |
| Packaging: | Bulk |
| Package / Case: | DO-203AA, DO-4, Stud |
| Operating Temperature - Junction: | -65°C ~ 175°C |
| Mounting Type: | Stud Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Diode Type: | Standard |
| Detailed Description: | Diode Standard 100V 20A Stud Mount DO-203AA |
| Current - Reverse Leakage @ Vr: | 10µA @ 100V |
| Current - Average Rectified (Io): | 20A |
| Capacitance @ Vr, F: | 300pF @ 10V, 1MHz |
| Email: | info@cjjhk.com |
Introduce
We can supply 1N5814, use the request quote form to request 1N5814 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1N5814.The price and lead time for 1N5814 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1N5814.We look forward to working with you to establish long-term relations of cooperation
