1984154
Phoenix Contact

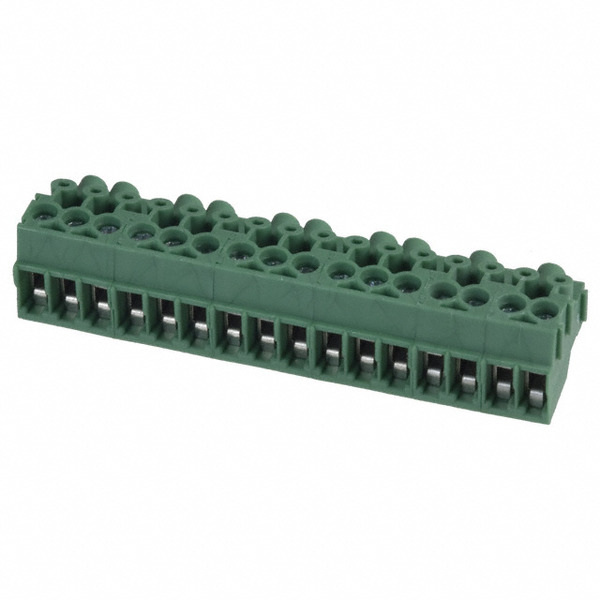

Images are for reference only.
See Product Specifications for product details.
Buy 1984154 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1984154 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1984154 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 16POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $3.38 | $3.285 | $3.07 | $2.824 | $2.61 | |
Specifications
Data sheet
| Wire Strip Length: | 5mm |
|---|---|
| Wire Gauge or Range - mm²: | 0.2-1.5mm² |
| Wire Gauge or Range - AWG: | 16-26 AWG |
| Voltage - UL: | 300V |
| Voltage - IEC: | 400V |
| Type: | Plug for Unshrouded Header |
| Torque - Screw: | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Termination Style: | Screw - Clamping Yoke (Tension Sleeve) |
| Series: | COMBICON PT |
| Screw Size: | M2 |
| Positions Per Level: | 16 |
| Plug Wire Entry: | 90° and 180° |
| Pitch: | 0.138" (3.50mm) |
| Packaging: | Bulk |
| Other Names: | 277-1720 PT 1.5/16-PVH-3.5 PT1.5/16-PVH-3.5 |
| Operating Temperature: | - |
| Number of Positions: | 16 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.437" (11.10mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | - |
| Features: | - |
| Detailed Description: | 16 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° and 180° Free Hanging (In-Line) |
| Current - UL: | 10A |
| Current - IEC: | 8A |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | - |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply 1984154, use the request quote form to request 1984154 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1984154.The price and lead time for 1984154 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1984154.We look forward to working with you to establish long-term relations of cooperation
