19198-0016
Affinity Medical Technologies - a Molex company

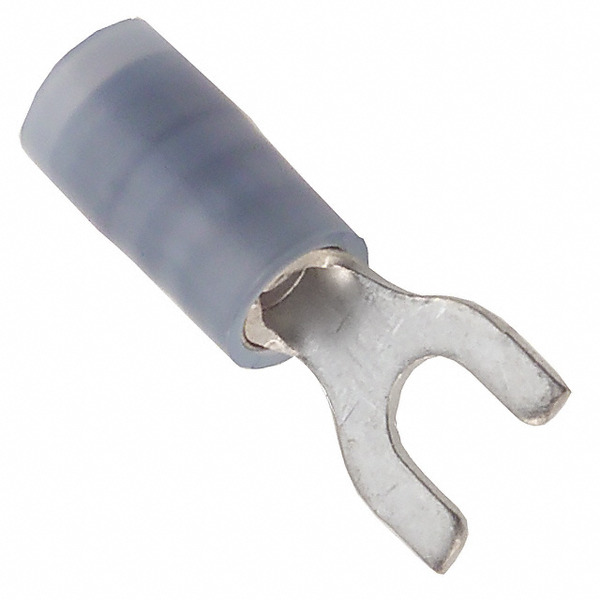

Images are for reference only.
See Product Specifications for product details.
Buy 19198-0016 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 19198-0016 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 19198-0016 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 14-16AWG #6 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.30 | $0.287 | $0.246 | $0.209 | $0.201 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.18 | $0.172 | $0.144 | $0.131 | ||
Specifications
Data sheet
| Wire Gauge: | 14-16 AWG |
|---|---|
| Width - Outer Edges: | 0.295" (7.49mm) |
| Tongue Inside Opening: | 0.146" (3.71mm) |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 6 Stud |
| Series: | Avikrimp |
| Packaging: | Bulk |
| Other Names: | 0191980016 191-98-0016-C 19198-0016-C 191980016 BB-824-06 WM18366 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Termination: | 0.415" (10.54mm) |
| Length - Ring Center to Termination: | 0.211" (5.36mm) |
| Length - Overall: | 0.804" (20.42mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.170" (4.32mm) |
| Insulation: | Insulated |
| Features: | - |
| Detailed Description: | Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material: | Copper |
| Contact Finish: | Electro-Tin |
| Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply 19198-0016, use the request quote form to request 19198-0016 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 19198-0016.The price and lead time for 19198-0016 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 19198-0016.We look forward to working with you to establish long-term relations of cooperation
