19164-0007
Affinity Medical Technologies - a Molex company

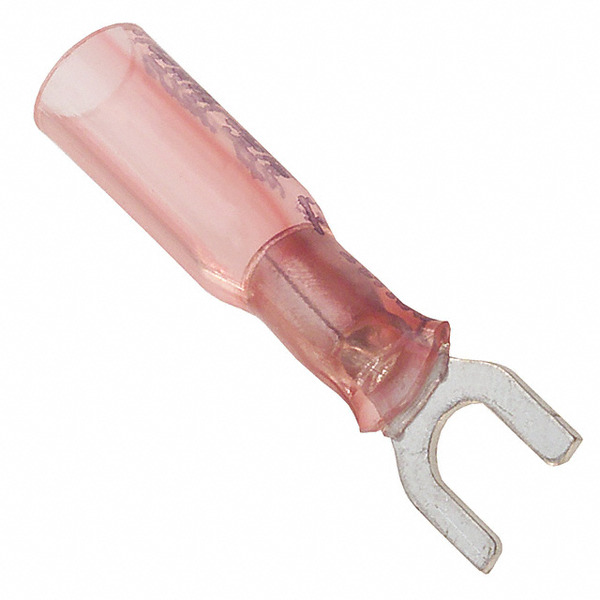

Images are for reference only.
See Product Specifications for product details.
Buy 19164-0007 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 19164-0007 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 19164-0007 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.62 | $0.579 | $0.521 | $0.463 | $0.444 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.405 | $0.386 | $0.318 | $0.29 | ||
Specifications
Data sheet
| Wire Gauge: | 18-22 AWG |
|---|---|
| Width - Outer Edges: | 0.323" (8.20mm) |
| Tongue Inside Opening: | 0.173" (4.39mm) |
| Termination: | Crimp |
| Terminal Type: | Standard |
| Stud/Tab Size: | 8 Stud |
| Series: | Perma-Seal |
| Packaging: | Bulk |
| Other Names: | 0191640007 191-64-0007-C 19164-0007-C 191640007 SA-235-08 WM18416 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | NiAc |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Length - Termination: | - |
| Length - Ring Center to Termination: | - |
| Length - Overall: | 1.340" (34.04mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.235" (5.97mm) |
| Insulation: | Insulated with Heat Shrink |
| Features: | - |
| Detailed Description: | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material: | Copper |
| Contact Finish: | Electro-Tin |
| Color: | Red |
| Email: | info@cjjhk.com |
Introduce
We can supply 19164-0007, use the request quote form to request 19164-0007 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 19164-0007.The price and lead time for 19164-0007 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 19164-0007.We look forward to working with you to establish long-term relations of cooperation
