19115-0046
Affinity Medical Technologies - a Molex company

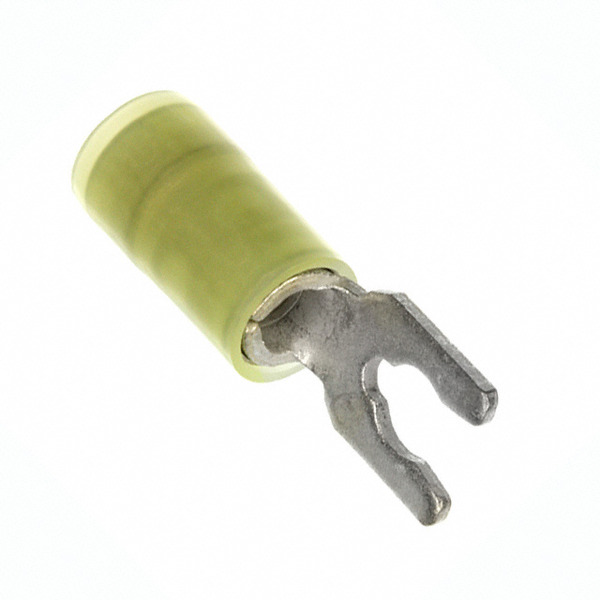

Images are for reference only.
See Product Specifications for product details.
Buy 19115-0046 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 19115-0046 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 19115-0046 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 10-12AWG #8 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.46 | $0.432 | $0.389 | $0.346 | $0.331 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.302 | $0.288 | $0.238 | $0.216 | ||
Specifications
Data sheet
| Wire Gauge: | 10-12 AWG |
|---|---|
| Width - Outer Edges: | 0.310" (7.87mm) |
| Tongue Inside Opening: | 0.139" (3.53mm) |
| Termination: | Crimp |
| Terminal Type: | Spring, Snap |
| Stud/Tab Size: | 8 Stud |
| Series: | Avikrimp |
| Packaging: | Bulk |
| Other Names: | 019115-0046 0191150046 19115-0046-C 191150046 C-8718-08 WM18741 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time: | 3 Weeks |
| Length - Termination: | 0.560" (14.22mm) |
| Length - Ring Center to Termination: | 0.261" (6.63mm) |
| Length - Overall: | 1.031" (26.19mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.225" (5.72mm) |
| Insulation: | Insulated |
| Features: | - |
| Detailed Description: | Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material: | Copper |
| Contact Finish: | Electro-Tin |
| Color: | Yellow |
| Email: | info@cjjhk.com |
Introduce
We can supply 19115-0046, use the request quote form to request 19115-0046 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 19115-0046.The price and lead time for 19115-0046 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 19115-0046.We look forward to working with you to establish long-term relations of cooperation
