19099-0032
Affinity Medical Technologies - a Molex company

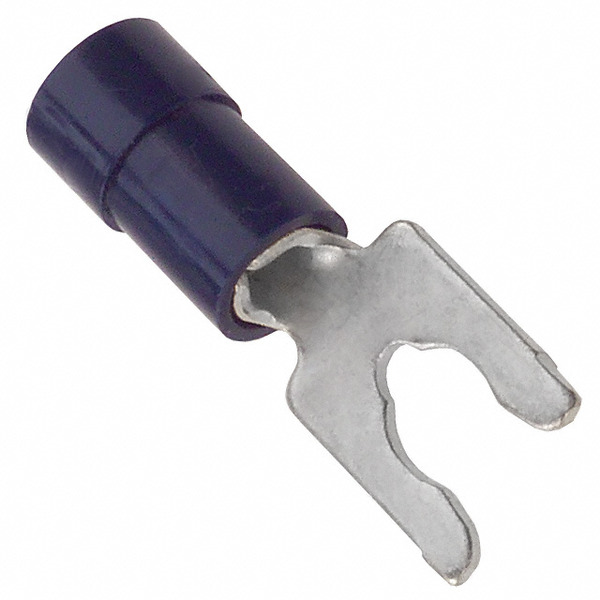

Images are for reference only.
See Product Specifications for product details.
Buy 19099-0032 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 19099-0032 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 19099-0032 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 14-16AWG #8 BLU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.26 | $0.244 | $0.208 | $0.182 | $0.169 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.15 | $0.143 | $0.117 | $0.107 | ||
Specifications
Data sheet
| Wire Gauge: | 14-16 AWG |
|---|---|
| Width - Outer Edges: | 0.310" (7.87mm) |
| Tongue Inside Opening: | 0.139" (3.53mm) |
| Termination: | Crimp |
| Terminal Type: | Spring, Snap |
| Stud/Tab Size: | 8 Stud |
| Series: | InsulKrimp |
| Packaging: | Bulk |
| Other Names: | 019099-0032 019099-0032-C 0190990032 0190990032-C 190-99-0032-C 19099-0032-C 190990032 190990032-C BB-2716-08X WM18319 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Length - Termination: | 0.405" (10.29mm) |
| Length - Ring Center to Termination: | 0.261" (6.63mm) |
| Length - Overall: | 0.871" (22.12mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.175" (4.45mm) |
| Insulation: | Insulated |
| Features: | - |
| Detailed Description: | Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Contact Material: | Copper |
| Contact Finish: | Electro-Tin |
| Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply 19099-0032, use the request quote form to request 19099-0032 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 19099-0032.The price and lead time for 19099-0032 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 19099-0032.We look forward to working with you to establish long-term relations of cooperation
