1909236
Phoenix Contact
Images are for reference only.
See Product Specifications for product details.
Buy 1909236 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1909236 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1909236 |
|---|---|
| Manufacturer | Phoenix Contact |

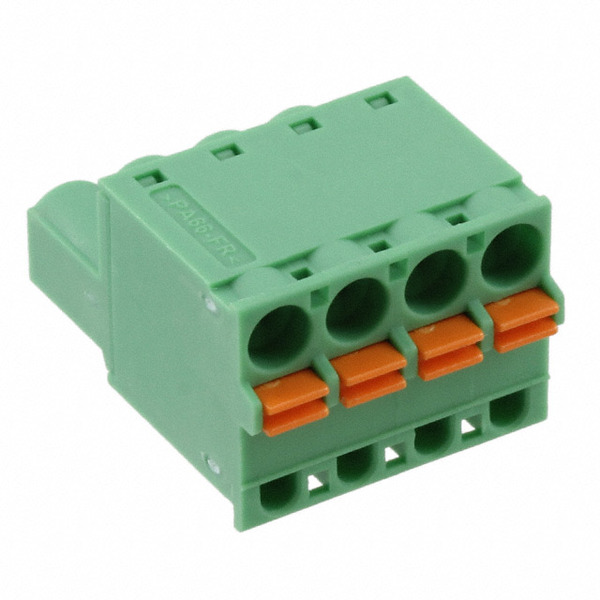

| Description | TERM BLOCK PLUG 4POS STR 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $5.19 | $5.05 | $4.72 | $4.342 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $4.012 | $3.823 | $3.587 | |||
Specifications
Data sheet
| Wire Strip Length: | 10mm |
|---|---|
| Wire Gauge or Range - mm²: | 0.2-2.5mm² |
| Wire Gauge or Range - AWG: | 12-26 AWG |
| Voltage - UL: | 300V |
| Voltage - IEC: | 630V |
| Type: | Plug, Female Sockets |
| Torque - Screw: | - |
| Termination Style: | Screwless - Leg Spring, Push-In Spring |
| Series: | COMBICON FKCT |
| Screw Size: | - |
| Positions Per Level: | 4 |
| Plug Wire Entry: | 180° |
| Pitch: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | 1909236-ND 277-12379 FKCT2.5/4-ST Q1364232 Q2735784 |
| Operating Temperature: | - |
| Number of Positions: | 4 |
| Number of Levels: | 1 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 2 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.591" (15.00mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | - |
| Features: | Retention Latches (Non-Wire Side) |
| Detailed Description: | 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - UL: | 10A |
| Current - IEC: | 12A |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | - |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply 1909236, use the request quote form to request 1909236 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1909236.The price and lead time for 1909236 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1909236.We look forward to working with you to establish long-term relations of cooperation
