19070-0059
Affinity Medical Technologies - a Molex company

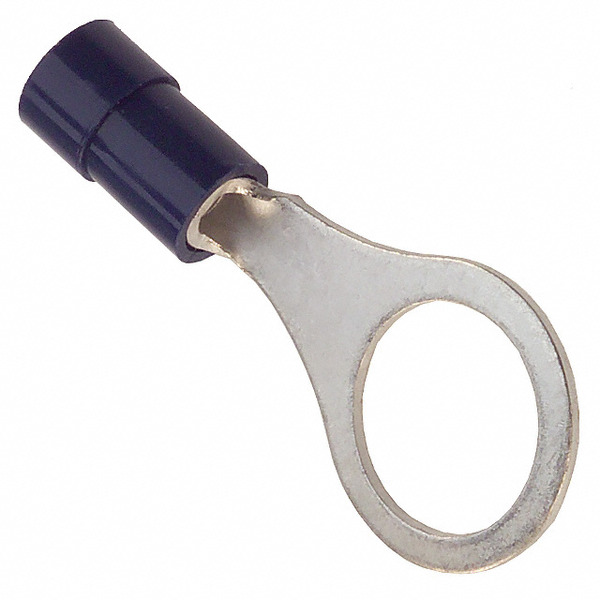

Images are for reference only.
See Product Specifications for product details.
Buy 19070-0059 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 19070-0059 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 19070-0059 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RING CIRC 14-16AWG #3/8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.30 | $0.284 | $0.243 | $0.207 | $0.199 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.178 | $0.17 | $0.142 | $0.13 | ||
Specifications
Data sheet
| Wire Gauge: | 14-16 AWG |
|---|---|
| Width - Outer Edges: | 0.544" (13.82mm) |
| Thickness: | - |
| Termination: | Crimp |
| Terminal Type: | Circular |
| Stud/Tab Size: | 3/8 Stud |
| Series: | InsulKrimp |
| Packaging: | Bulk |
| Other Names: | 019070-0059 019070-0059-C 0190700059 0190700059-C 190-70-0059-C 19070-0059-C 190700059 190700059-C BB-218-38X WM18285 |
| Mounting Type: | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Insulation: | Poly-Vinyl Chloride (PVC) |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Length - Overall: | 1.261" (32.03mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Diameter: | 0.175" (4.45mm) |
| Insulation: | Insulated |
| Features: | Serrated Termination |
| Detailed Description: | Ring Terminal Connector 3/8 Stud Circular 14-16 AWG Crimp |
| Contact Material: | Copper |
| Contact Finish: | Tin |
| Color: | Blue |
| Email: | info@cjjhk.com |
Introduce
We can supply 19070-0059, use the request quote form to request 19070-0059 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 19070-0059.The price and lead time for 19070-0059 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 19070-0059.We look forward to working with you to establish long-term relations of cooperation
