1833085
Phoenix Contact

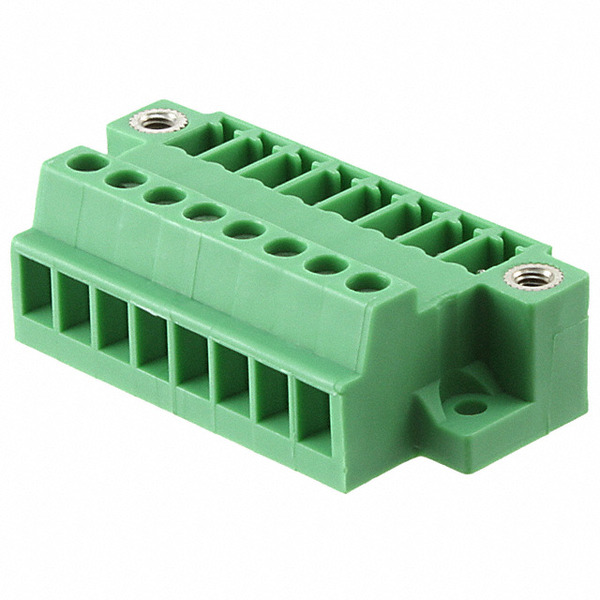

Images are for reference only.
See Product Specifications for product details.
Buy 1833085 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1833085 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1833085 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK RCPT 8POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $17.30 | $16.831 | $15.73 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $14.472 | $13.37 | $12.741 | |||
Specifications
Data sheet
| Wire Strip Length: | 7mm |
|---|---|
| Wire Gauge or Range - mm²: | 0.14-1.5mm² |
| Wire Gauge or Range - AWG: | 14-30 AWG |
| Voltage - UL: | 300V |
| Voltage - IEC: | 320V |
| Type: | Receptacle, Male Pins |
| Torque - Screw: | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Termination Style: | Screw - Clamping Yoke (Tension Sleeve) |
| Series: | COMBICON MCVU |
| Screw Size: | M2 |
| Positions Per Level: | 8 |
| Plug Wire Entry: | - |
| Pitch: | 0.150" (3.81mm) |
| Packaging: | Bulk |
| Other Names: | 1833085-ND 277-6003 MCVU1,5/8-GFD-3,81 |
| Operating Temperature: | - |
| Number of Positions: | 8 |
| Number of Levels: | 1 |
| Mounting Type: | Board Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 4 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.492" (12.50mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | - |
| Features: | Mating and Mounting Flange |
| Detailed Description: | 8 Position Terminal Block Receptacle, Male Pins 0.150" (3.81mm) Board Mount |
| Current - UL: | 8A |
| Current - IEC: | 8A |
| Contact Tail Length: | - |
| Contact Mating Finish: | Tin |
| Contact Material: | - |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply 1833085, use the request quote form to request 1833085 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1833085.The price and lead time for 1833085 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1833085.We look forward to working with you to establish long-term relations of cooperation
