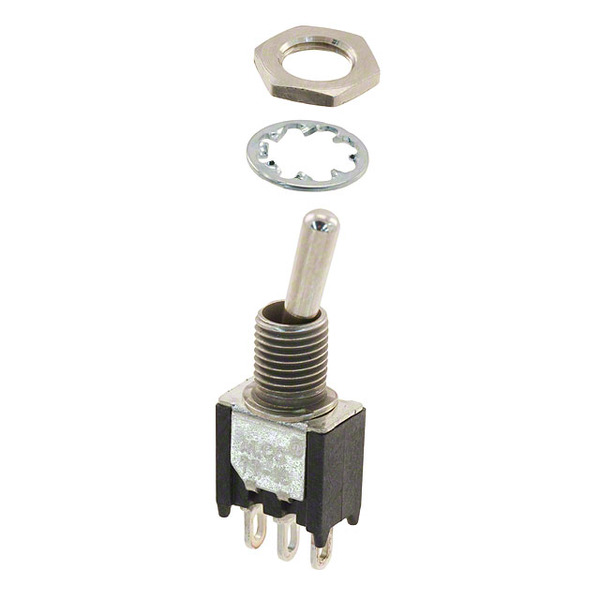

1825222-3
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 1825222-3 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1825222-3 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1825222-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH TOGGLE SPDT 3A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $10.74 | $10.453 | $10.17 | $9.605 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $9.323 | $9.04 | $7.628 | $7.345 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 28V |
|---|---|
| Voltage Rating - AC: | 125V |
| Termination Style: | Solder Lug |
| Switch Function: | On-On |
| Series: | TT |
| Panel Cutout Dimensions: | Circular - 4.83mm Dia |
| Packaging: | Bulk |
| Other Names: | TT13D2T04 TT13D2T04-ND |
| Operating Temperature: | -30°C ~ 85°C |
| Mounting Type: | Panel Mount |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Illumination Voltage (Nominal): | - |
| Illumination Type, Color: | - |
| Illumination: | Non-Illuminated |
| Features: | Epoxy Sealed Terminals |
| Electrical Life: | 80,000 Cycles |
| Detailed Description: | Toggle Switch SPDT Panel Mount |
| Current Rating: | 3A (AC/DC) |
| Circuit: | SPDT |
| Bushing Thread: | 10-48 |
| Actuator Type: | Standard Round |
| Actuator Material: | Brass, Nickel Plated |
| Actuator Length: | 7.52mm |
| Email: | info@cjjhk.com |
Introduce
We can supply 1825222-3, use the request quote form to request 1825222-3 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1825222-3.The price and lead time for 1825222-3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1825222-3.We look forward to working with you to establish long-term relations of cooperation
