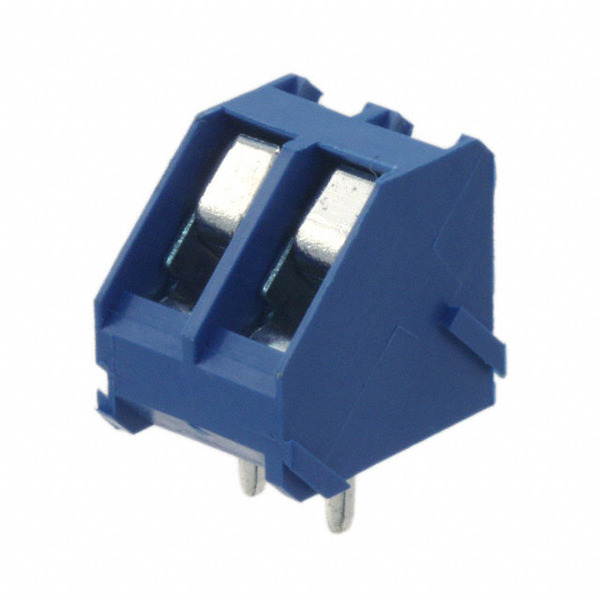

1776252-2
Agastat Relays / TE Connectivity
Images are for reference only.
See Product Specifications for product details.
Buy 1776252-2 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1776252-2 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1776252-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK 2POS 45DEG ENTRY 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.49 | $1.049 | $0.978 | $0.888 | $0.884 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.747 | $0.707 | $0.629 | $0.511 | ||
Specifications
Data sheet
| Wire Termination: | Screw - Leaf Spring, Wire Guard |
|---|---|
| Wire Gauge: | 14-22 AWG |
| Voltage: | 300V |
| Torque - Screw: | 0.45 Nm (4.0 Lb-In) |
| Series: | Buchanan |
| Screw Thread: | M2.6 |
| Screw Material - Plating: | Steel, Galvanized - Chromate Plated |
| Positions Per Level: | 2 |
| Pitch: | 0.197" (5.00mm) |
| Packaging: | Bulk |
| Other Names: | 17762522 A98004 |
| Operating Temperature: | -55°C ~ 105°C |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Orientation: | 45° (135°) Angle with Board |
| Manufacturer Standard Lead Time: | 23 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Features: | Interlocking (Side) |
| Detailed Description: | 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole |
| Current: | 10A |
| Contact Material - Plating: | Brass - Tin Plated |
| Color: | Blue |
| Clamp Material - Plating: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 1776252-2, use the request quote form to request 1776252-2 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1776252-2.The price and lead time for 1776252-2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1776252-2.We look forward to working with you to establish long-term relations of cooperation
