1775470-7
Agastat Relays / TE Connectivity

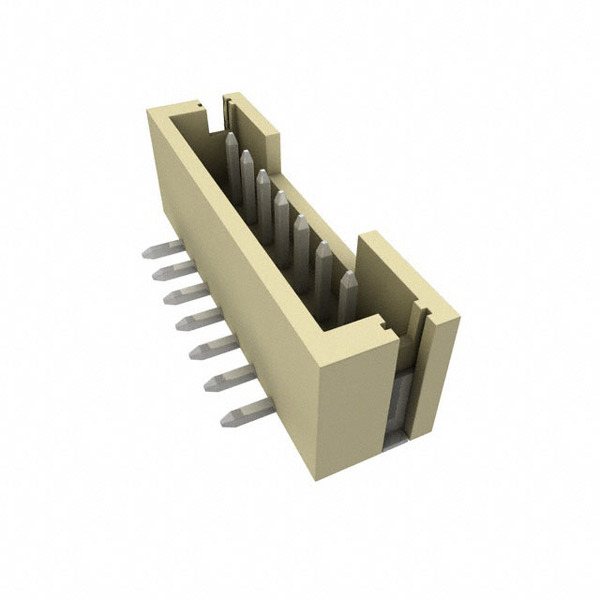

Images are for reference only.
See Product Specifications for product details.
Buy 1775470-7 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1775470-7 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1775470-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 7POS 2MM VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.97 | $0.855 | $0.805 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.771 | $0.738 | $0.671 | |||
Specifications
Data sheet
| Voltage Rating: | 250V |
|---|---|
| Termination: | Solder |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Series: | High Performance Interconnect (HPI) |
| Row Spacing - Mating: | - |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Original-Reel® |
| Overall Contact Length: | - |
| Other Names: | A100057DKR |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Rows: | 1 |
| Number of Positions Loaded: | All |
| Number of Positions: | 7 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | - |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyamide (PA9T), Nylon 9T |
| Insulation Height: | 0.242" (6.14mm) |
| Insulation Color: | Natural |
| Ingress Protection: | - |
| Features: | Solder Retention |
| Fastening Type: | - |
| Detailed Description: | Connector Header Surface Mount 7 position 0.079" (2.00mm) |
| Current Rating: | 3A |
| Contact Type: | Male Pin |
| Contact Shape: | Square |
| Contact Material: | Brass |
| Contact Length - Post: | - |
| Contact Length - Mating: | 0.138" (3.50mm) |
| Contact Finish Thickness - Post: | 80.0µin (2.03µm) |
| Contact Finish Thickness - Mating: | 80.0µin (2.03µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Tin |
| Connector Type: | Header |
| Applications: | Automotive, General Purpose, Industrial, Medical |
| Email: | info@cjjhk.com |
Introduce
We can supply 1775470-7, use the request quote form to request 1775470-7 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1775470-7.The price and lead time for 1775470-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1775470-7.We look forward to working with you to establish long-term relations of cooperation
