1767517
Phoenix Contact

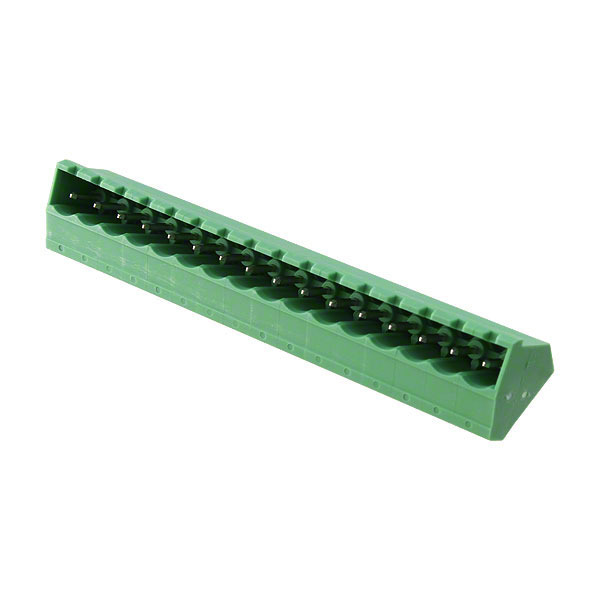

Images are for reference only.
See Product Specifications for product details.
Buy 1767517 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 1767517 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 1767517 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | Pluggable Terminal Blocks 16 Pos 5.08mm pitch Through Hole Header |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $5.419 | $4.892 | $4.412 | $4.316 | ||
Specifications
Data sheet
| Wire Strip Length: | - |
|---|---|
| Wire Gauge or Range - mm²: | - |
| Wire Gauge or Range - AWG: | - |
| Voltage - UL: | 300V |
| Voltage - IEC: | 630V |
| Type: | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw: | - |
| Termination Style: | Solder |
| Series: | COMBICON SMSTBA |
| Screw Size: | - |
| Positions Per Level: | 16 |
| Plug Wire Entry: | - |
| Pitch: | 0.200" (5.08mm) |
| Packaging: | Bulk |
| Other Names: | 1767517-ND 277-6925 SMSTBA2,5/16-G-5,08 |
| Operating Temperature: | - |
| Number of Positions: | 16 |
| Number of Levels: | 1 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 2 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Height: | 0.583" (14.80mm) |
| Ingress Protection: | - |
| Housing Material: | Polyamide (PA), Nylon |
| Header Orientation: | 45° |
| Features: | - |
| Detailed Description: | 16 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 45° Through Hole |
| Current - UL: | 15A |
| Current - IEC: | 12A |
| Contact Tail Length: | 0.138" (3.50mm) |
| Contact Mating Finish: | Tin |
| Contact Material: | - |
| Color: | Green |
| Email: | info@cjjhk.com |
Introduce
We can supply 1767517, use the request quote form to request 1767517 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 1767517.The price and lead time for 1767517 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 1767517.We look forward to working with you to establish long-term relations of cooperation
